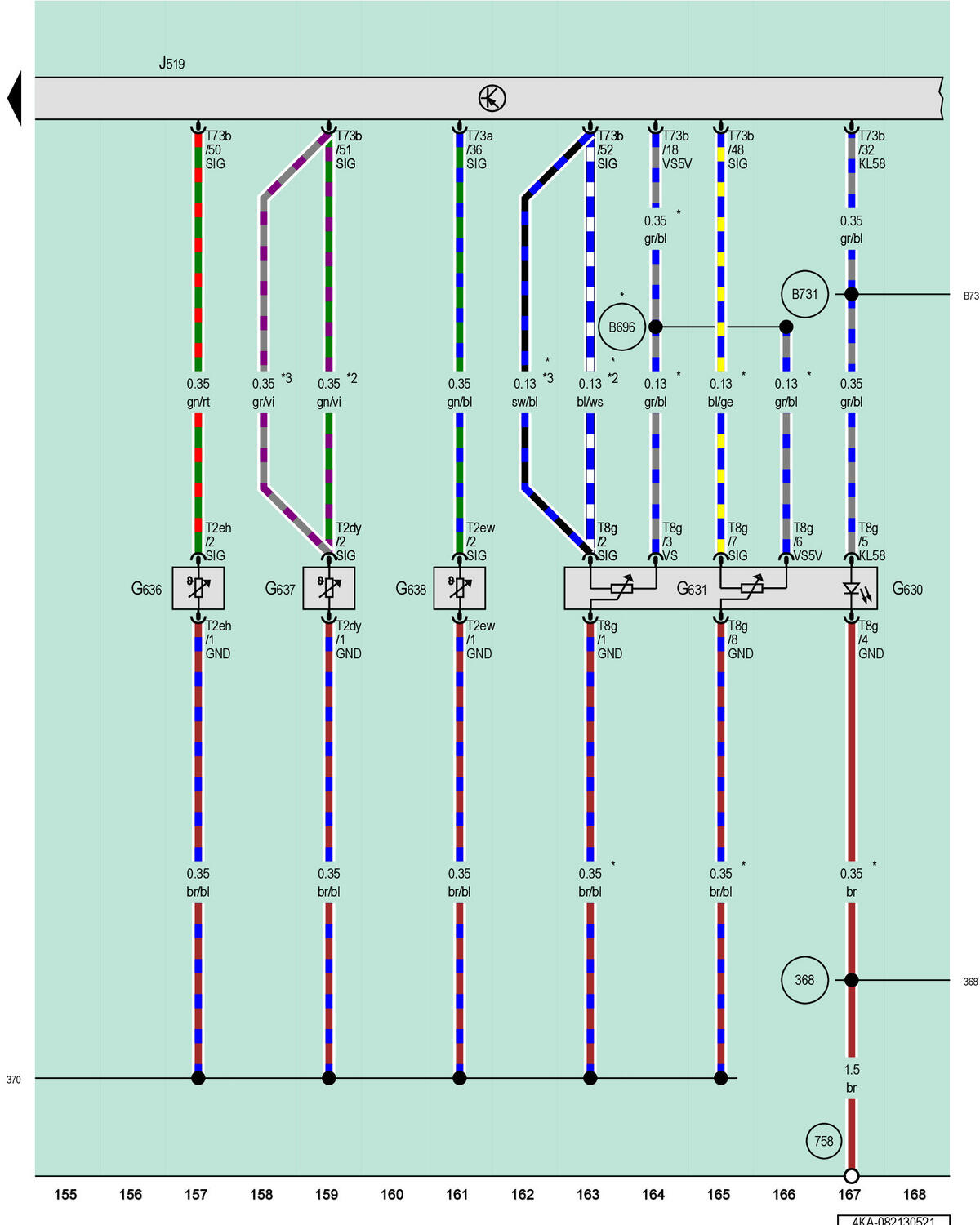

Position Sensor In Left Rear Upper Body Vent, Position Sensor In Right Rear Upper Body Vent, Right Rear Upper Body Vent Temperature Sensor, Left Rear FOOTWELL Vent Temperature Sensor, Right Rear FOOTWELL Vent Temperature Sensor, Vehicle Electrical System Control Module
G630
Position Sensor in Left Rear Upper Body Vent
G631
Position Sensor in Right Rear Upper Body Vent
G636
Right Rear Upper Body Vent Temperature Sensor
G637
Left Rear Footwell Vent Temperature Sensor
G638
Right Rear Footwell Vent Temperature Sensor
J519
Vehicle Electrical System Control Module
T2dy
2-Pin Connector, Black
T2eh
2-Pin Connector, Black
T2ew
2-Pin Connector, Black
T8g
8-Pin Connector, Black
T73a
73-Pin Connector, Black, Naturally Cloudy
T73b
73-Pin Connector, Black, Black
368
Ground Connection 3 (in Main Wiring Harness)
370
Ground Connection 5 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
B696
A/C System Connection 1 (in Main Wiring Harness)
B731
Connection 58s (in Main Wiring Harness) 1
*
Depending on Equipment
*2
Omitted as a Running Change
*3
Running Change
