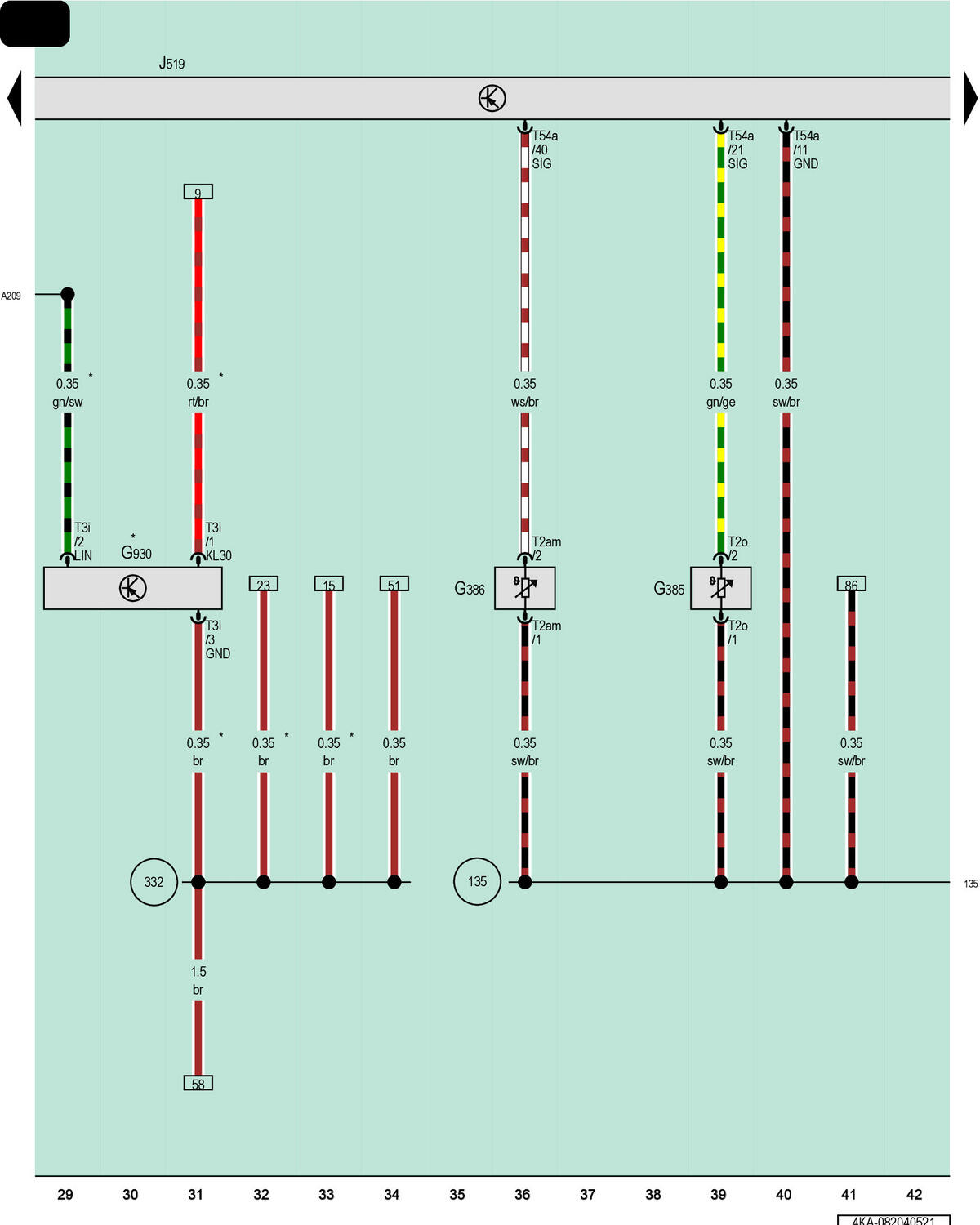

Left Front Upper Body Vent Temperature Sensor, Right Front Upper Body Vent Temperature Sensor, Vehicle Electrical System Control Module
G385
Left Front Upper Body Vent Temperature Sensor
G386
Right Front Upper Body Vent Temperature Sensor
G930
A/C System Particulate Matter Concentration Sensor
J519
Vehicle Electrical System Control Module
T2am
2-Pin Connector, Black
T2o
2-Pin Connector, Black
T3i
3-Pin Connector, Blue
T54a
54-Pin Connector, Black
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
332
Ground Connection 4 (in Instrument Panel Wiring Harness)
A209
LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
*
Depending on Equipment
