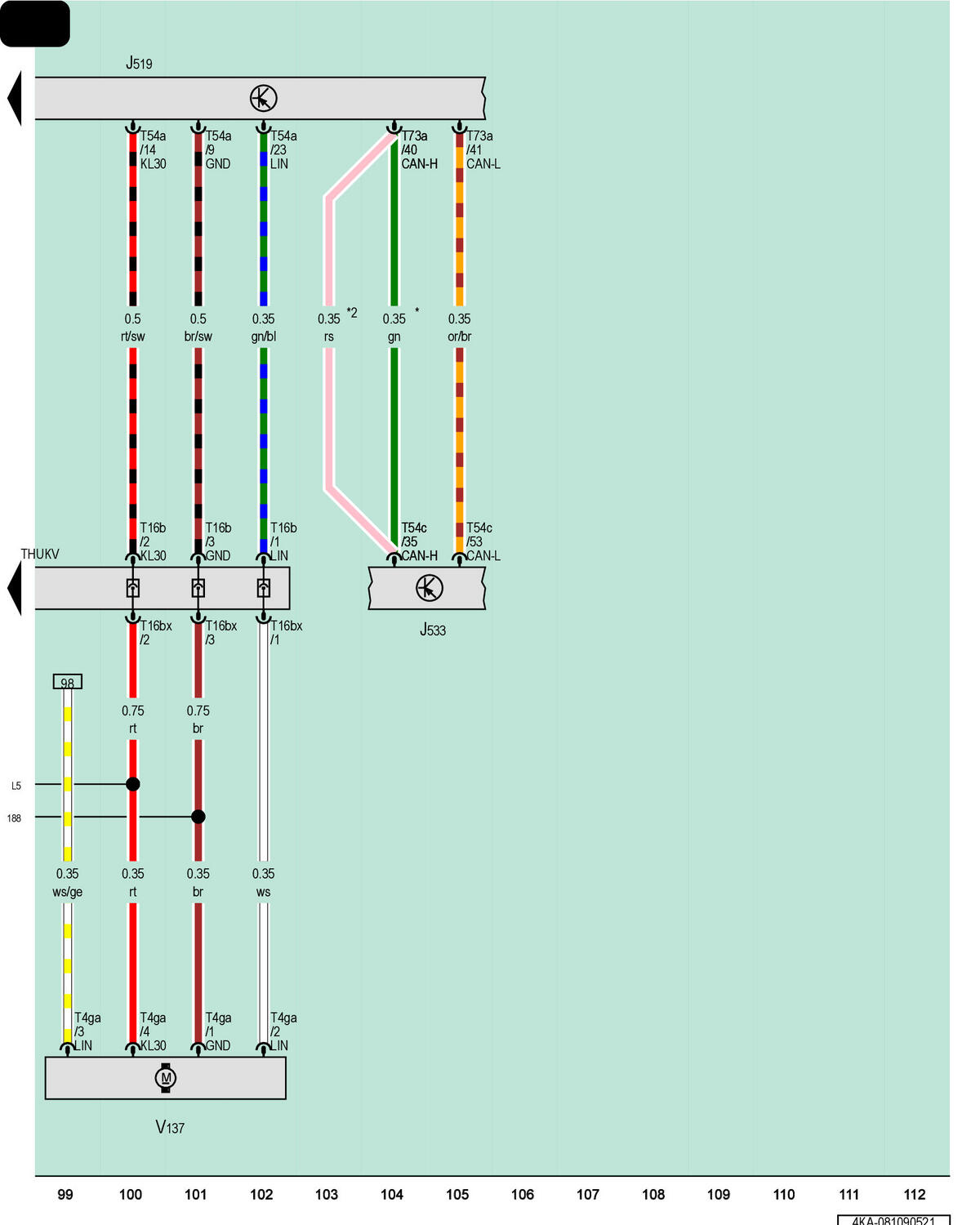

Vehicle Electrical System Control Module, Rear Temperature Control Door Motor

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

T4ga

4-Pin Connector, Black

T16b

16-Pin Connector, Black

T16bx

16-Pin Connector, Black

T54a

54-Pin Connector, Black

T54c

54-Pin Connector, Black

T73a

73-Pin Connector, Black, Naturally Cloudy

THUKV

Front Heating and Air Conditioning Coupling Point

V137

Rear Temperature Control Door Motor

188

Ground Connection 3 (in A/C Wiring Harness)

Connection 1 (in A/C Unit Wiring Harness)

Omitted as a Running Change

Running Change
