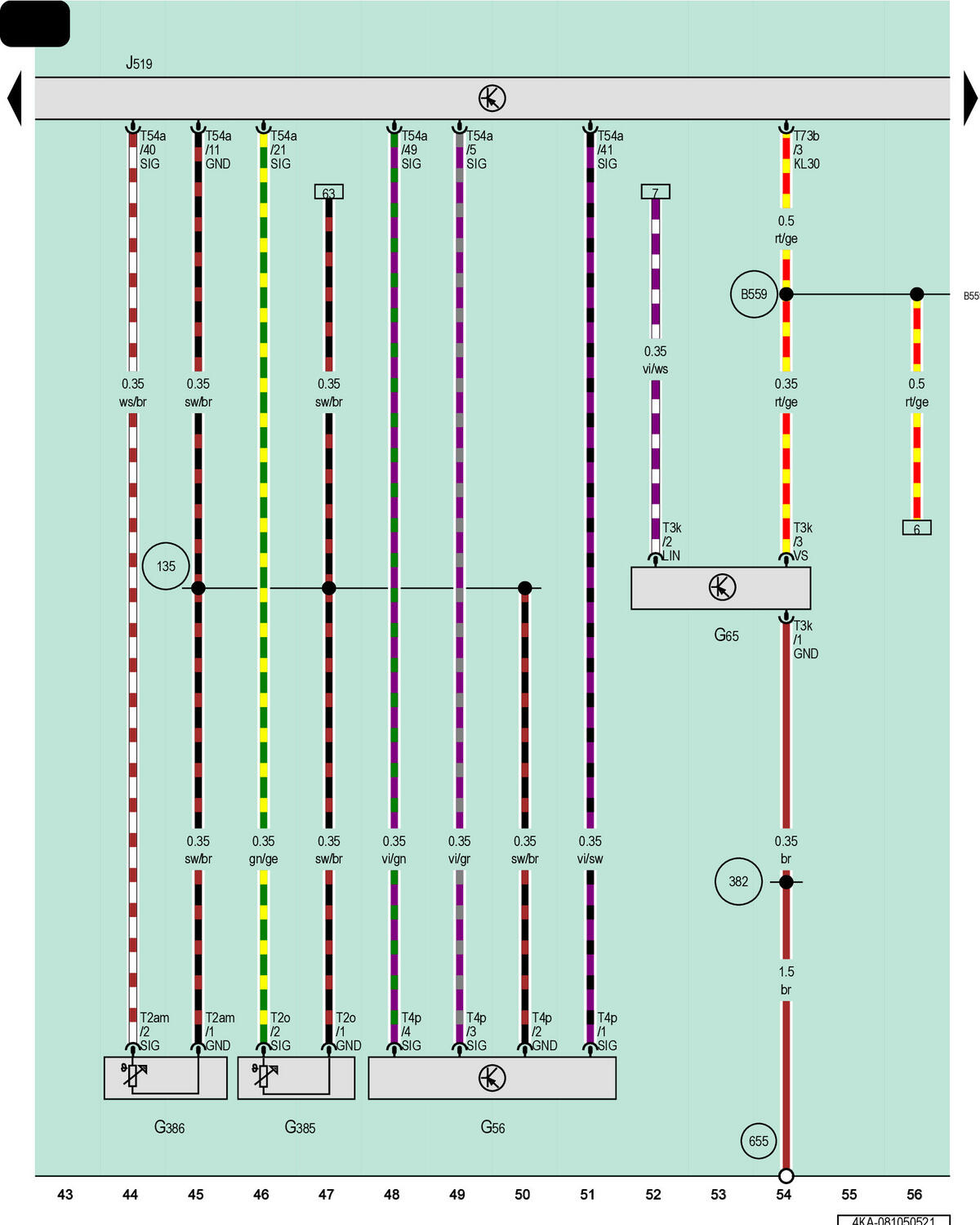

Instrument Panel Temperature Sensor, High Pressure Sensor, Right Front Upper Body Vent Temperature Sensor, Vehicle Electrical System Control Module
G56
Instrument Panel Temperature Sensor
G65
High Pressure Sensor
G385
Left Front Upper Body Vent Temperature Sensor
G386
Right Front Upper Body Vent Temperature Sensor
J519
Vehicle Electrical System Control Module
T2am
2-Pin Connector, Black
T2o
2-Pin Connector, Black
T3k
3-Pin Connector, Black
T4p
4-Pin Connector, Naturally Cloudy
T54a
54-Pin Connector, Black
T73b
73-Pin Connector, Black, Black
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
655
Ground Connection on Left Headlamp
B559
Positive Connection 1 (30G) (in Main Wiring Harness)
