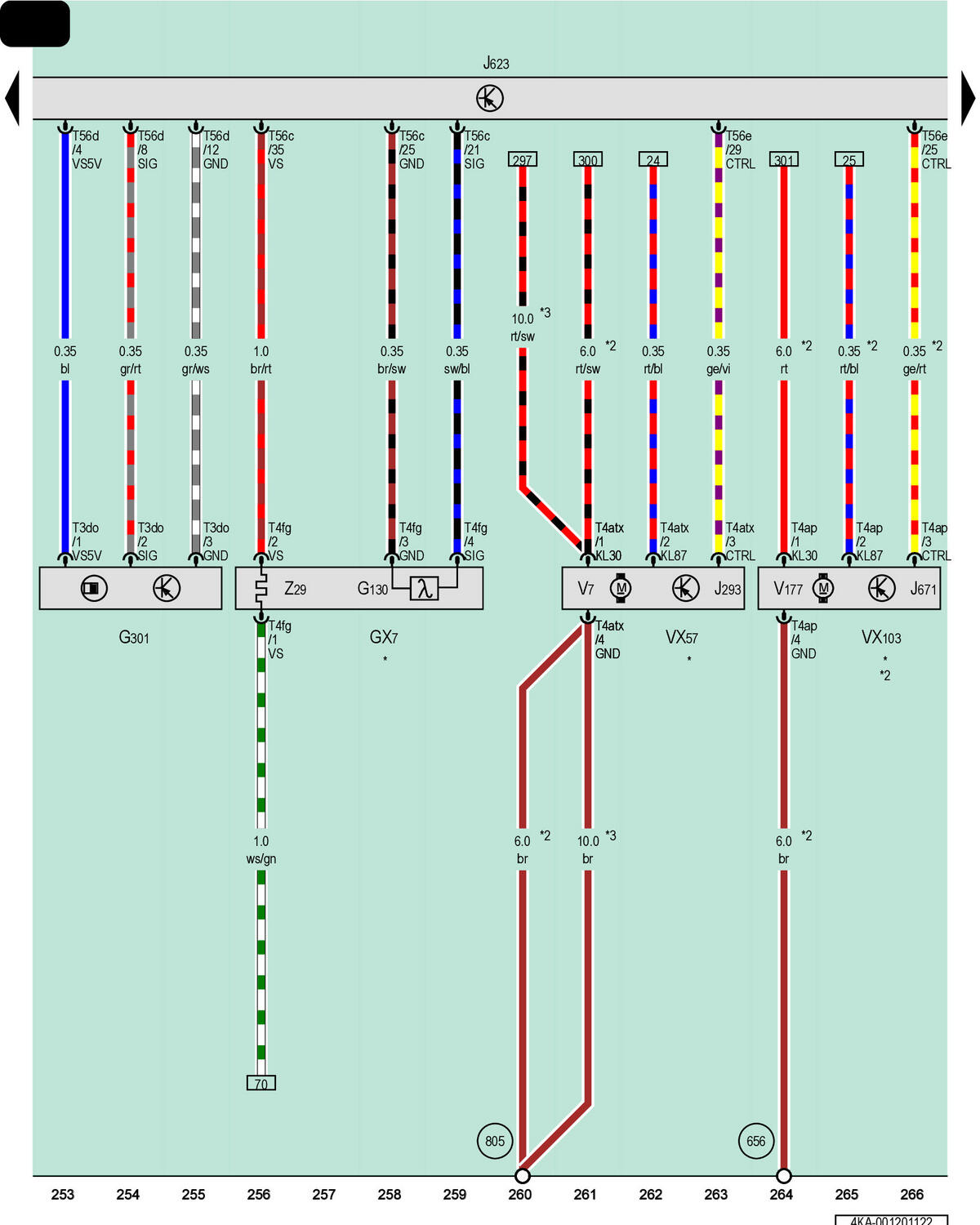

Oxygen Sensor 1 After Catalytic Converter, Camshaft Position Sensor 4, Engine/Motor Control Module, Radiator Fan, Radiator Fan 2

Courtesy of AUDI OF AMERICA, LLC

GX7

Oxygen Sensor 1 After Catalytic Converter

G130

Oxygen Sensor After Catalytic Converter

G301

Camshaft Position Sensor 4

J293

Radiator Fan Control Module

J623

Engine/Motor Control Module

J671

Radiator Fan Control Module 2

T3do

3-Pin Connector, Black

T4ap

4-Pin Connector, Black

T4atx

4-Pin Connector, Black

T4fg

4-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple

T56e

56-Pin Connector, Black, Green

V7

Radiator Fan

VX57

Radiator Fan

VX103

Radiator Fan 2

V177

Radiator Fan 2

Z29

Heater for Oxygen Sensor 1 After Catalytic Converter

656

Ground Connection on Right Headlamp

805

Ground Connection 2 on Right Headlamp

*

Pre-Wired Component

*2

For Vehicles with Trailer Hitch

*3

For Vehicles Without Trailer Hitch
