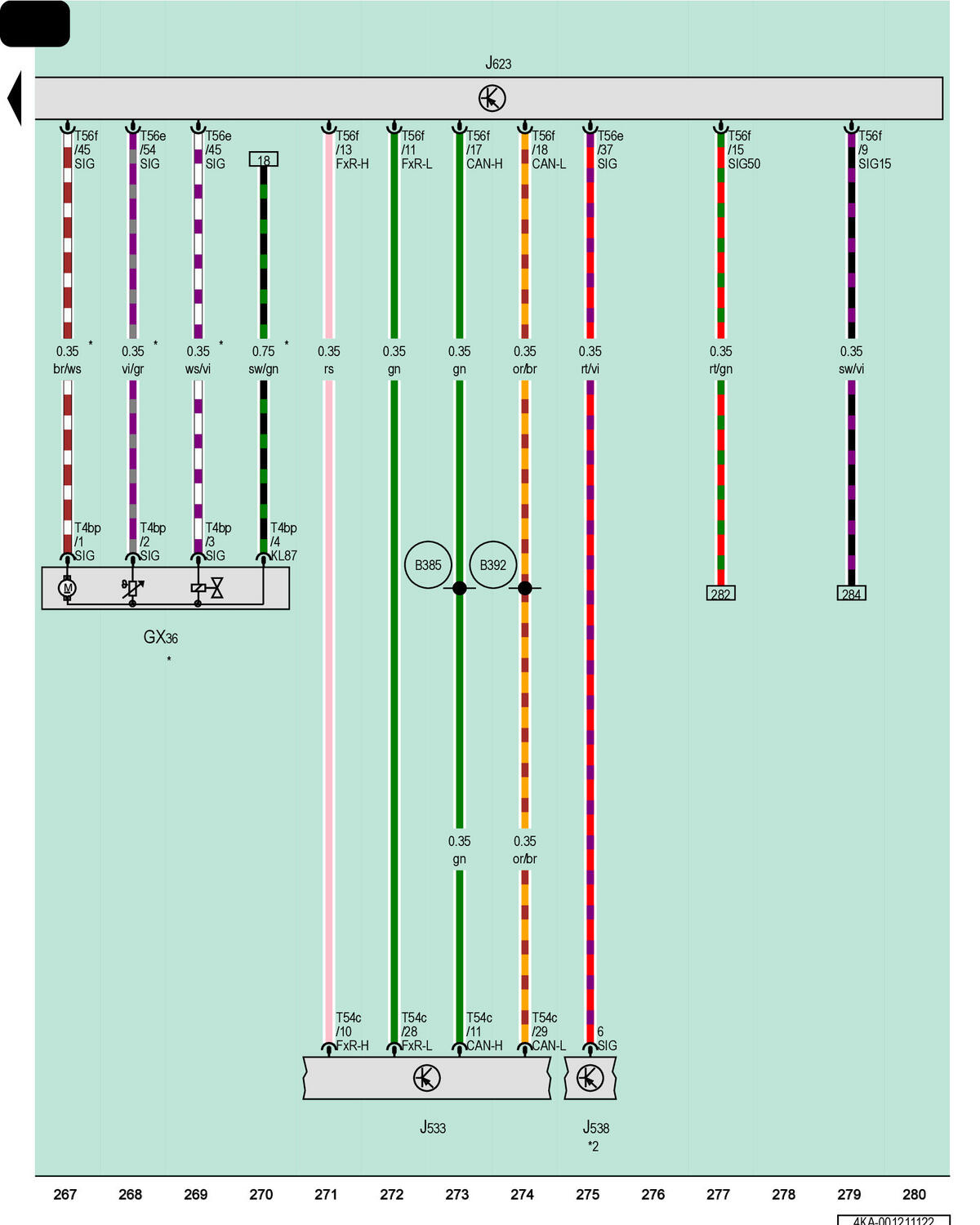

Fuel Tank Leak Detection Module, Data Bus On Board Diagnostic Interface, Fuel Pump Control Module, Engine/Motor Control Module
GX36
Fuel Tank Leak Detection Module
J533
Data Bus on Board Diagnostic Interface
J538
Fuel Pump Control Module
J623
Engine/Motor Control Module
T4bp
4-Pin Connector, Black
T54c
54-Pin Connector, Black
T56e
56-Pin Connector, Black, Green
T56f
56-Pin Connector, Black, Black
B385
Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)
B392
Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)
*
For USA Only
*2
Refer to Applicable Fuel System Wiring Diagram
