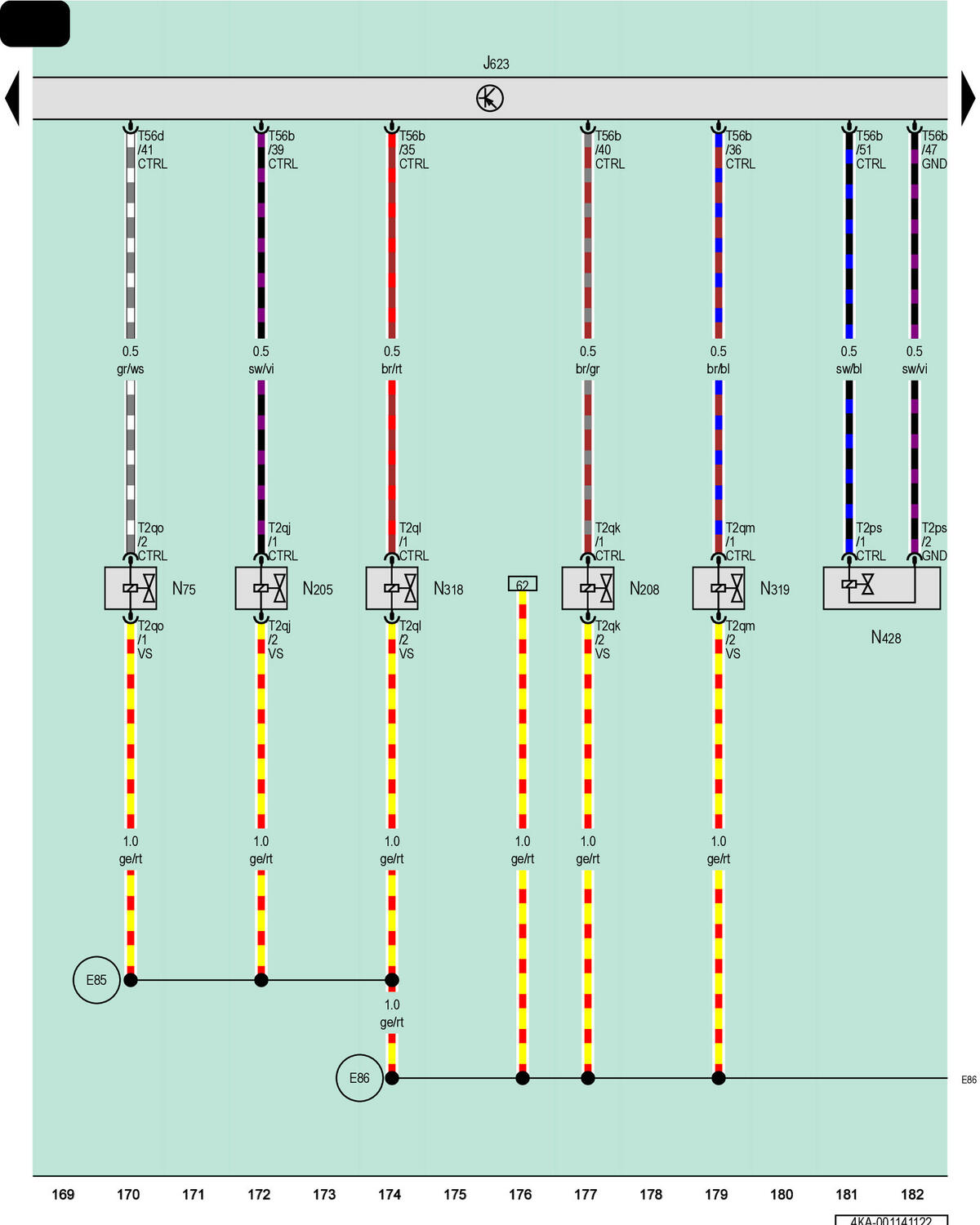

Engine/Motor Control Module, WASTEGATE Bypass Regulator Valve, Camshaft Adjustment Valve 1, Camshaft Adjustment Valve 2, Exhaust Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 2, Oil Pressure Regulation Valve
J623
Engine/Motor Control Module
N75
Wastegate Bypass Regulator Valve
N205
Camshaft Adjustment Valve 1
N208
Camshaft Adjustment Valve 2
N318
Exhaust Camshaft Adjustment Valve 1
N319
Exhaust Camshaft Adjustment Valve 2
N428
Oil Pressure Regulation Valve
T2ps
2-Pin Connector, Black
T2qj
2-Pin Connector, Black
T2qk
2-Pin Connector, Black
T2ql
2-Pin Connector, Black
T2qm
2-Pin Connector, Black
T2qo
2-Pin Connector, Black
T56b
56-Pin Connector, Black, White
T56d
56-Pin Connector, Black, Purple
E85
Connection 87a (in Engine Wiring Harness) 9
E86
Connection 87a (in Engine Wiring Harness) 10
