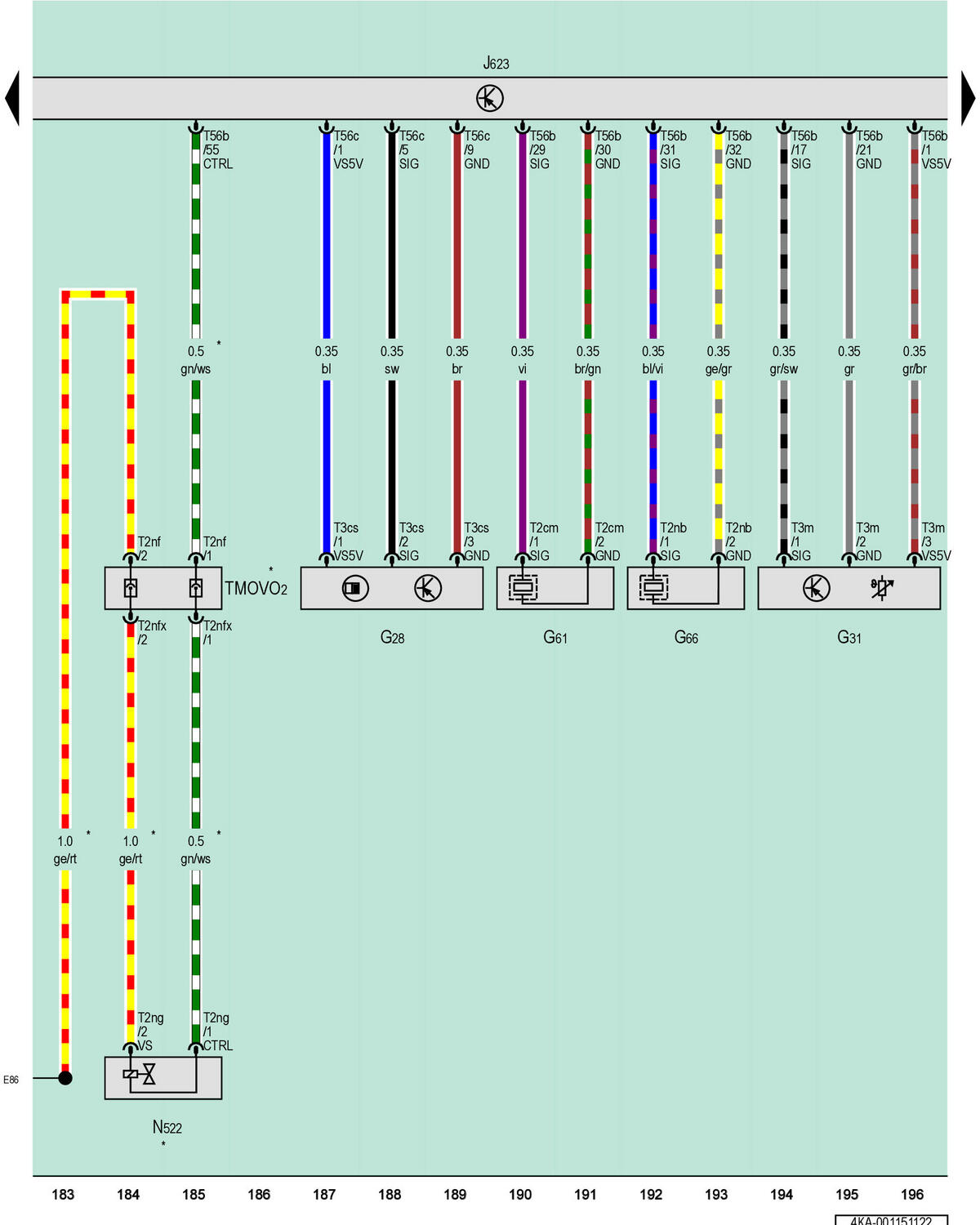

Engine Speed Sensor, Charge Air Pressure Sensor, Knock Sensor 1, Knock Sensor 2, Engine/Motor Control Module, Piston Cooling Nozzle Control Valve

Courtesy of AUDI OF AMERICA, LLC

G28

Engine Speed Sensor

G31

Charge Air Pressure Sensor

G61

Knock Sensor 1

G66

Knock Sensor 2

J623

Engine/Motor Control Module

N522

Piston Cooling Nozzle Control Valve

T2cm

2-Pin Connector, Black

T2nb

2-Pin Connector, Black

T2nf

2-Pin Connector, Black

T2nfx

2-Pin Connector, Black

T2ng

2-Pin Connector, Black

T3cs

3-Pin Connector, Black

T3m

3-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56c

56-Pin Connector, Black, Blue

TMOVO2

Engine Pre-Wiring Coupling Point 2

E86

Connection 87a (in Engine Wiring Harness) 10

*

Depending on Equipment
