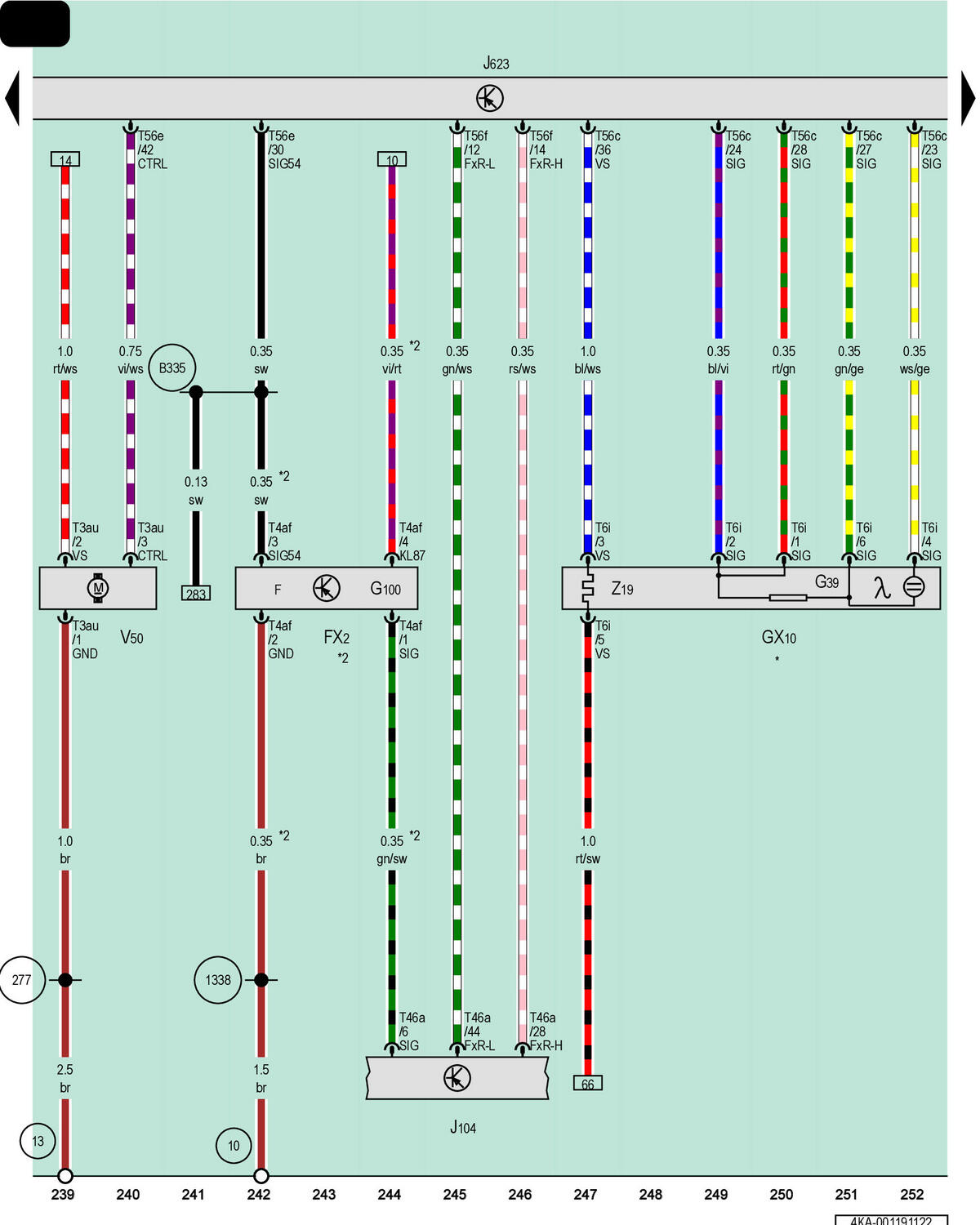

Brake Pedal Switch, Oxygen Sensor 1 Before Catalytic Converter, Abs Control Module, Engine/Motor Control Module, Coolant RECIRCULATION Pump

Courtesy of AUDI OF AMERICA, LLC

F

Brake Lamp Switch

FX2

Brake Pedal Switch

GX10

Oxygen Sensor 1 Before Catalytic Converter

G39

Heated Oxygen Sensor

G100

Brake Pedal Position Sensor

J104

ABS Control Module

J623

Engine/Motor Control Module

T3au

3-Pin Connector, Black

T4af

4-Pin Connector, Black

T6i

6-Pin Connector, Black

T46a

46-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

V50

Coolant Recirculation Pump

Z19

Oxygen Sensor Heater

10

Ground Connection in Plenum Chamber

13

Ground Connection in Engine/Motor Compartment, Right

277

Ground Connection 3 (in Interior Wiring Harness)

1338

Ground Connection 40 (in Main Wiring Harness)

B335

Connection 54 (in Main Wiring Harness) 1

*

Pre-Wired Component

*2

For Vehicles Without Traffic Jam Pilot
