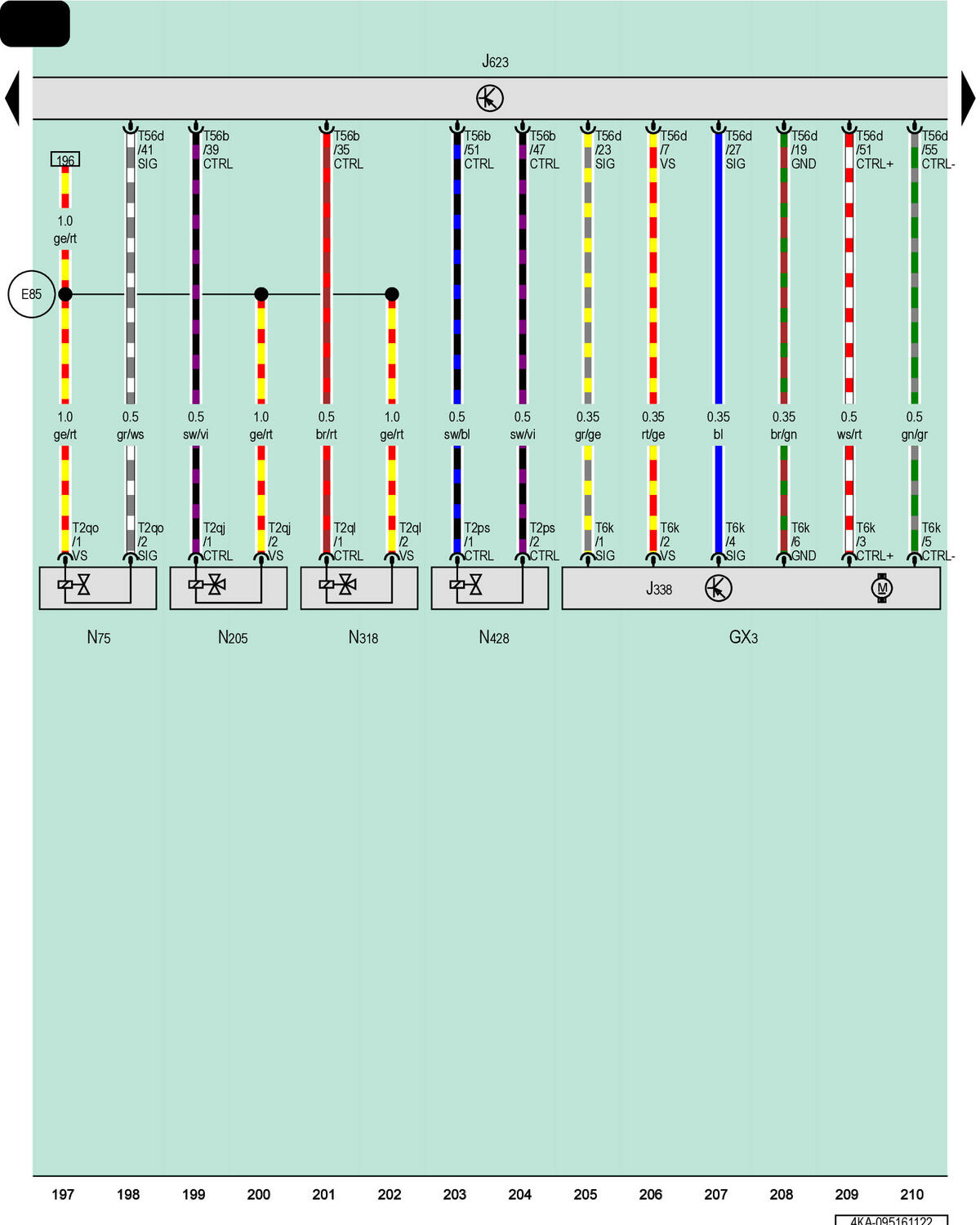

Throttle Valve Control Module, Engine/Motor Control Module, WASTEGATE Bypass Regulator Valve, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1, Oil Pressure Regulation Valve

Courtesy of AUDI OF AMERICA, LLC

GX3

Throttle Valve Control Module

J338

Throttle Valve Control Module

J623

Engine/Motor Control Module

N75

Wastegate Bypass Regulator Valve

N205

Camshaft Adjustment Valve 1

N318

Exhaust Camshaft Adjustment Valve 1

N428

Oil Pressure Regulation Valve

T2ps

2-Pin Connector, Black

T2qj

2-Pin Connector, Black

T2ql

2-Pin Connector, Black

T2qo

2-Pin Connector, Black

T6k

6-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple

E85

Connection 87a (in Engine Wiring Harness) 9
