Structure-Borne Sound Control Module, Structure-Borne Sound Actuator

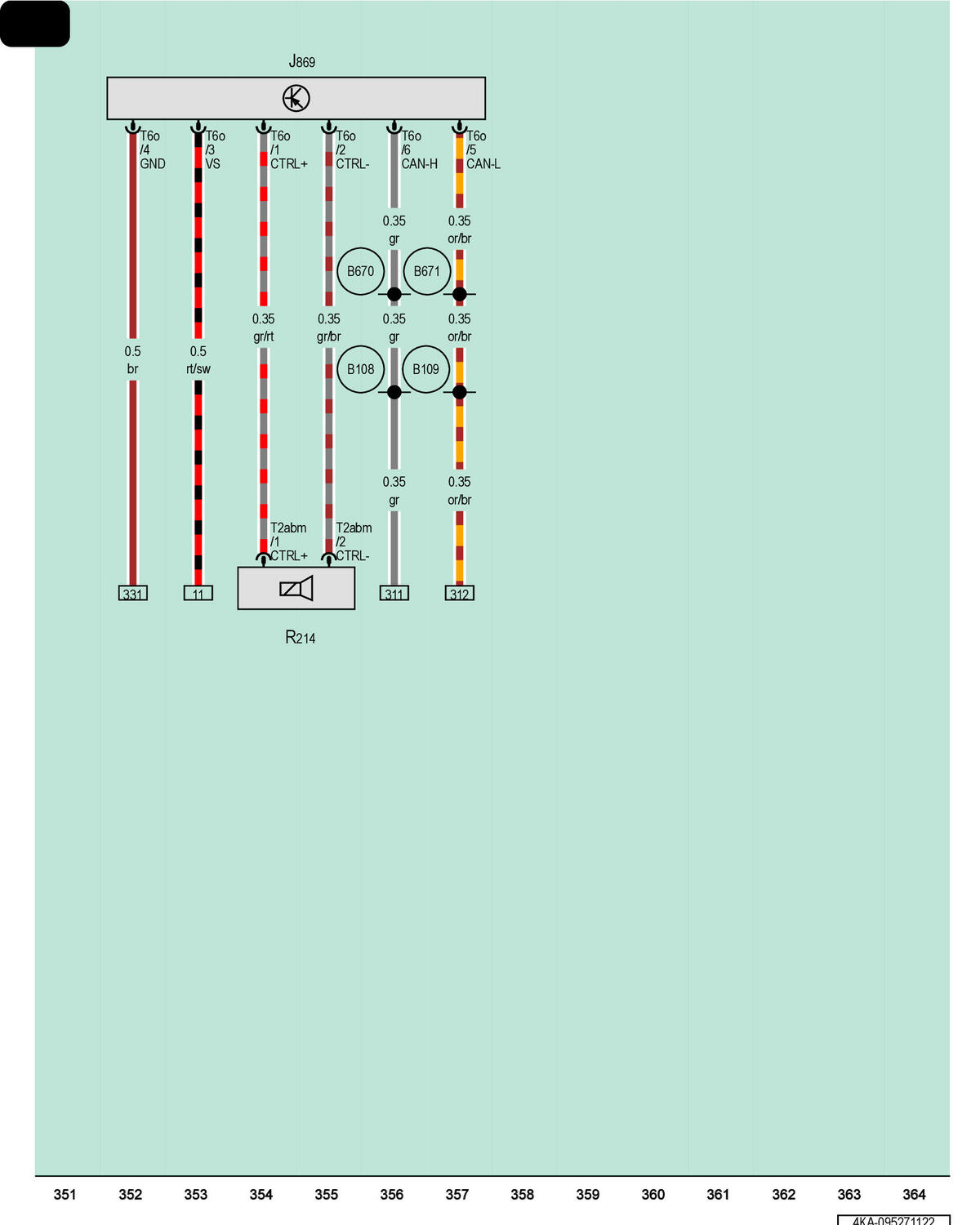

Fig 1:

Courtesy of AUDI OF AMERICA, LLC

J869

Structure-Borne Sound Control Module

R214

Structure-Borne Sound Actuator

T2abm

2-Pin Connector, Black

T6o

6-Pin Connector, Black

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

B670

CAN Bus Extended High Connection 3 (in Main Wiring Harness)

B671

CAN Bus Extended Low Connection 3 (in Main Wiring Harness)
