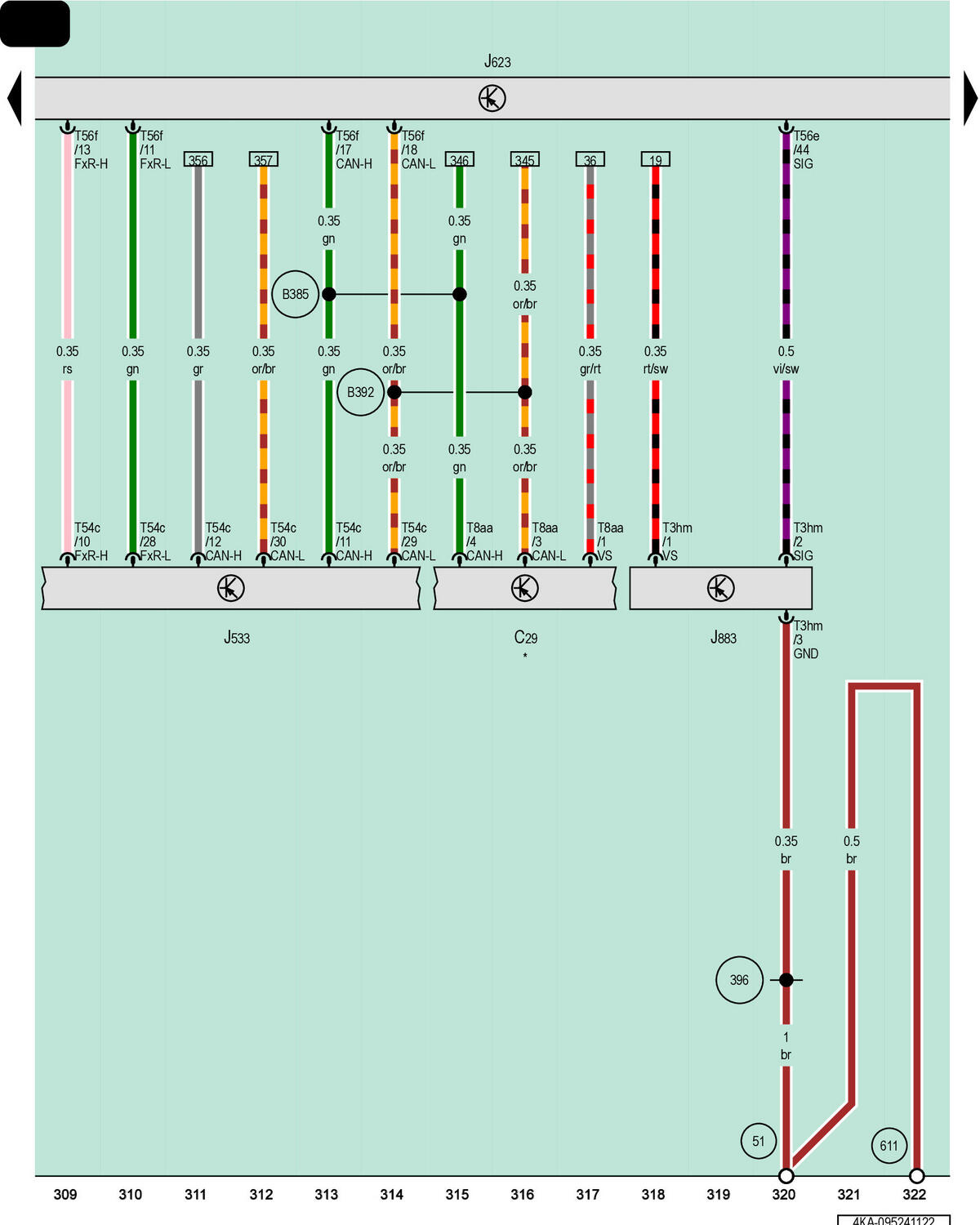

Starter Generator, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Exhaust Door Control Unit

Courtesy of AUDI OF AMERICA, LLC

C29

Starter Generator

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

J883

Exhaust Door Control Unit

T3hm

3-Pin Connector, Black

T8aa

8-Pin Connector, Black

T54c

54-Pin Connector, Black

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

51

Ground Connection in Luggage Compartment, Right

396

Ground Connection 31 (in Main Wiring Harness)

611

Ground Connection on Fuel Tank Filler Neck

B385

Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)

B392

Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Battery Wiring Diagram
