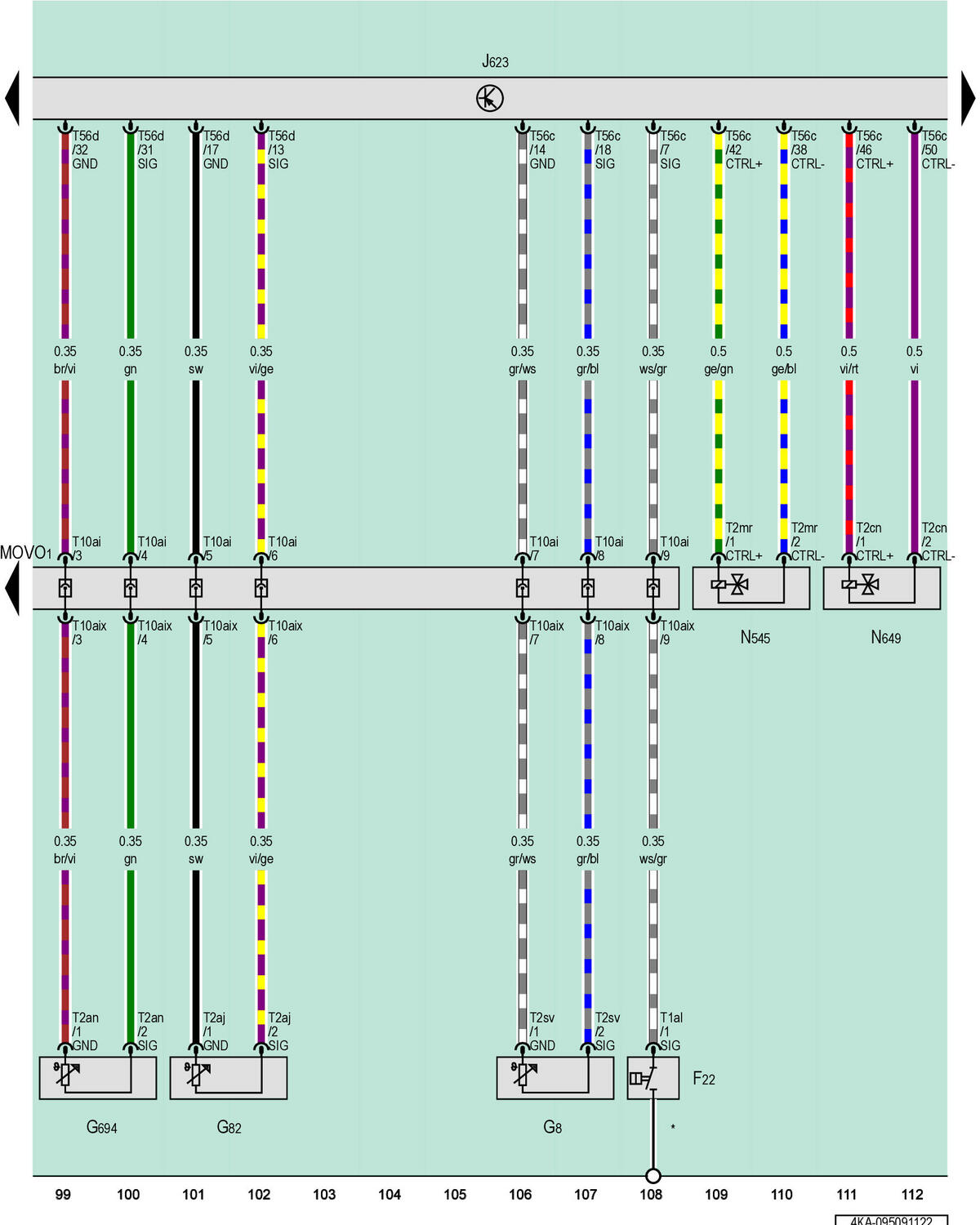

Oil Pressure Switch, Oil Temperature Sensor, Engine Coolant Temperature Sensor On Engine, Engine Temperature Control Sensor, Engine/Motor Control Module, Cylinder Block Coolant Valve, Mechanical Coolant Pump Switch Valve

Courtesy of AUDI OF AMERICA, LLC

F22

Oil Pressure Switch

Oil Temperature Sensor

G82

Engine Coolant Temperature Sensor on Engine

G694

Engine Temperature Control Sensor

J623

Engine/Motor Control Module

N545

Cylinder Block Coolant Valve

N649

Mechanical Coolant Pump Switch Valve

T1al

1-Pin Connector, Black

T2aj

2-Pin Connector, Black

T2an

2-Pin Connector, Black

T2cn

2-Pin Connector, Black

T2mr

2-Pin Connector, Black

T2sv

2-Pin Connector, Black

T10ai

10-Pin Connector, Black

T10aix

10-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple

TMOVO1

Engine Pre-Wiring Coupling Point 1

Ground Supply via the Housing
