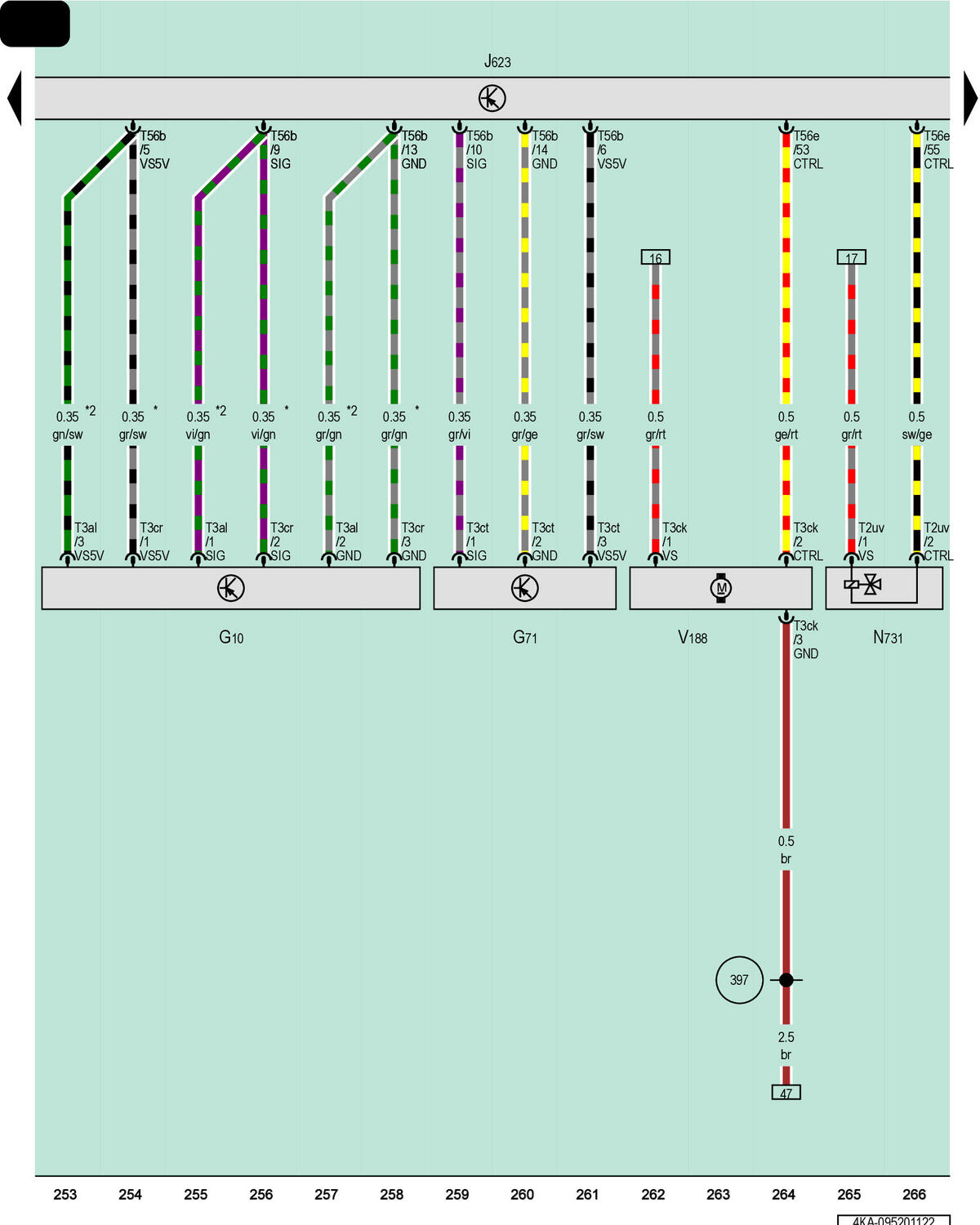

Oil Pressure Sensor, Manifold Absolute Pressure Sensor, Engine/Motor Control Module, Electrical Compressor Bypass Door Valve, Charge Air Cooling Pump

Courtesy of AUDI OF AMERICA, LLC

G10

Oil Pressure Sensor

G71

Manifold Absolute Pressure Sensor

J623

Engine/Motor Control Module

N731

Electrical Compressor Bypass Door Valve

T2uv

2-Pin Connector, Black

T3al

3-Pin Connector, Black

T3ck

3-Pin Connector, Black

T3cr

3-Pin Connector, Black

T3ct

3-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56e

56-Pin Connector, Black, Green

V188

Charge Air Cooling Pump

397

Ground Connection 32 (in Main Wiring Harness)

*

Through June 2022

*2

From June 2022
