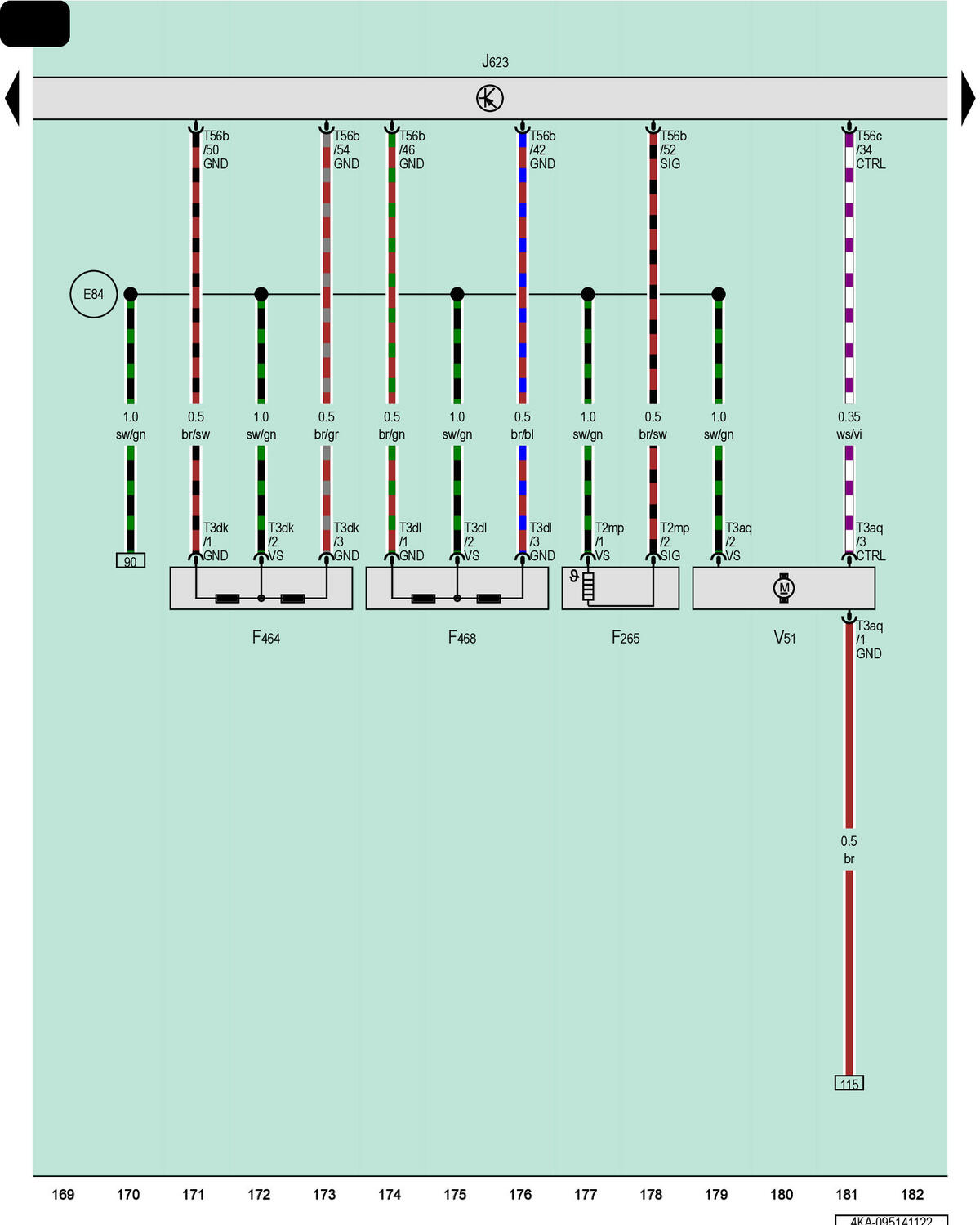

Map Controlled Engine Cooling Thermostat, Cylinder 5 Intake Cam Actuator 1, Cylinder 6 Intake Cam Actuator 1, Engine/Motor Control Module, After-Run Coolant Pump

Courtesy of AUDI OF AMERICA, LLC

F265

Map Controlled Engine Cooling Thermostat

F464

Cylinder 5 Intake Cam Actuator 1

F468

Cylinder 6 Intake Cam Actuator 1

J623

Engine/Motor Control Module

T2mp

2-Pin Connector, Black

T3aq

3-Pin Connector, Black

T3dk

3-Pin Connector, Black

T3dl

3-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56c

56-Pin Connector, Black, Blue

V51

After-Run Coolant Pump

E84

Connection 87a (in Engine Wiring Harness) 8
