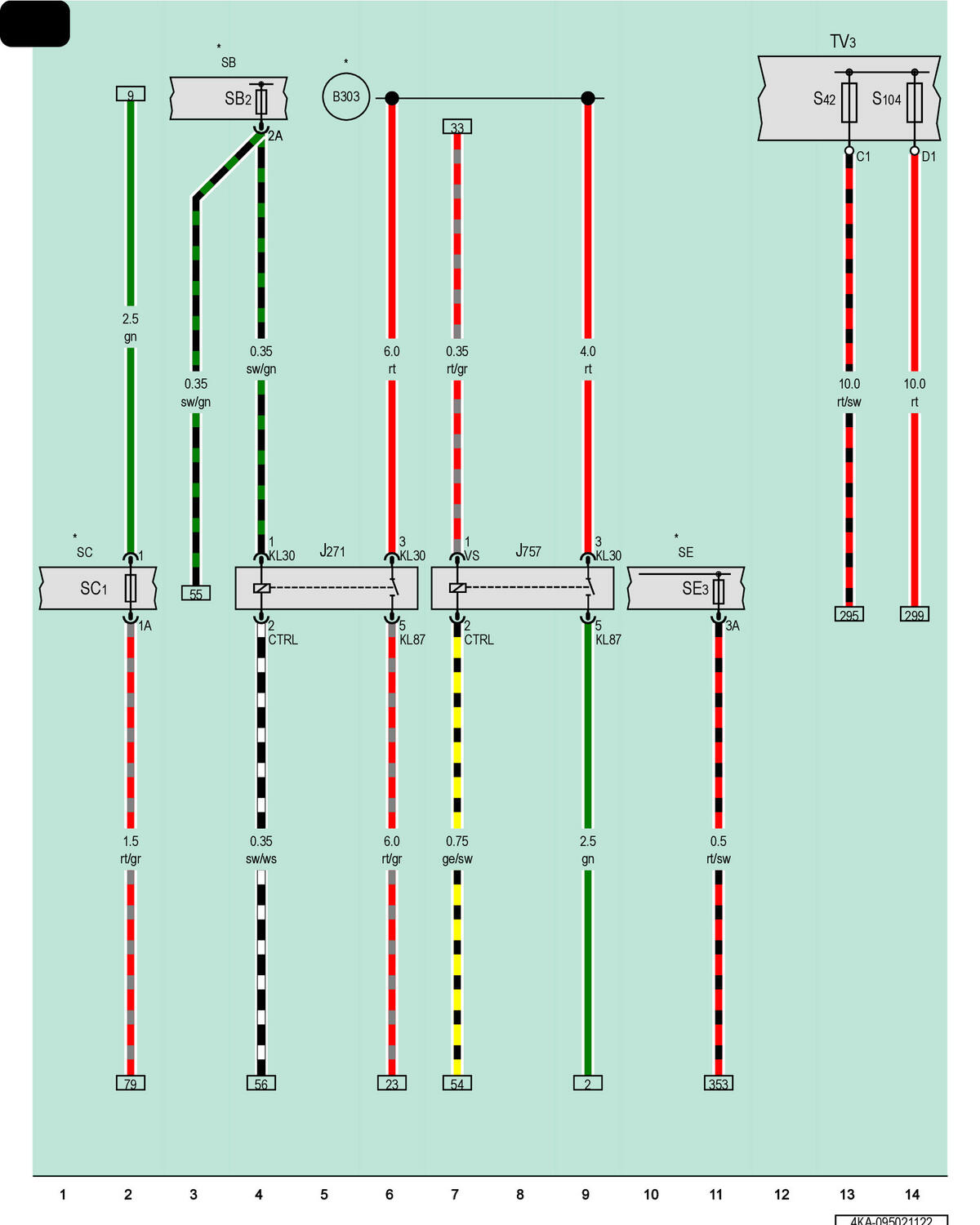

MOTRONIC Engine Control Module Power Supply Relay, Engine Component Power Supply Relay, Fuse Panel B, Fuse Panel C, Fuse Panel E, Terminal 30A Wire Junction

Courtesy of AUDI OF AMERICA, LLC

J271

Motronic Engine Control Module Power Supply Relay

J757

Engine Component Power Supply Relay

S42

Radiator Fan Fuse

S104

Radiator Fan Second Speed Fuse

SB

Fuse Panel B

SB2

Fuse 2 (On Fuse Panel B)

SC

Fuse Panel C

SC1

Fuse 1 (On Fuse Panel C)

SE

Fuse Panel E

SE3

Fuse 3 on Fuse Panel E

TV3

Terminal 30a Wire Junction

B303

Positive Connection 7 (30) (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
