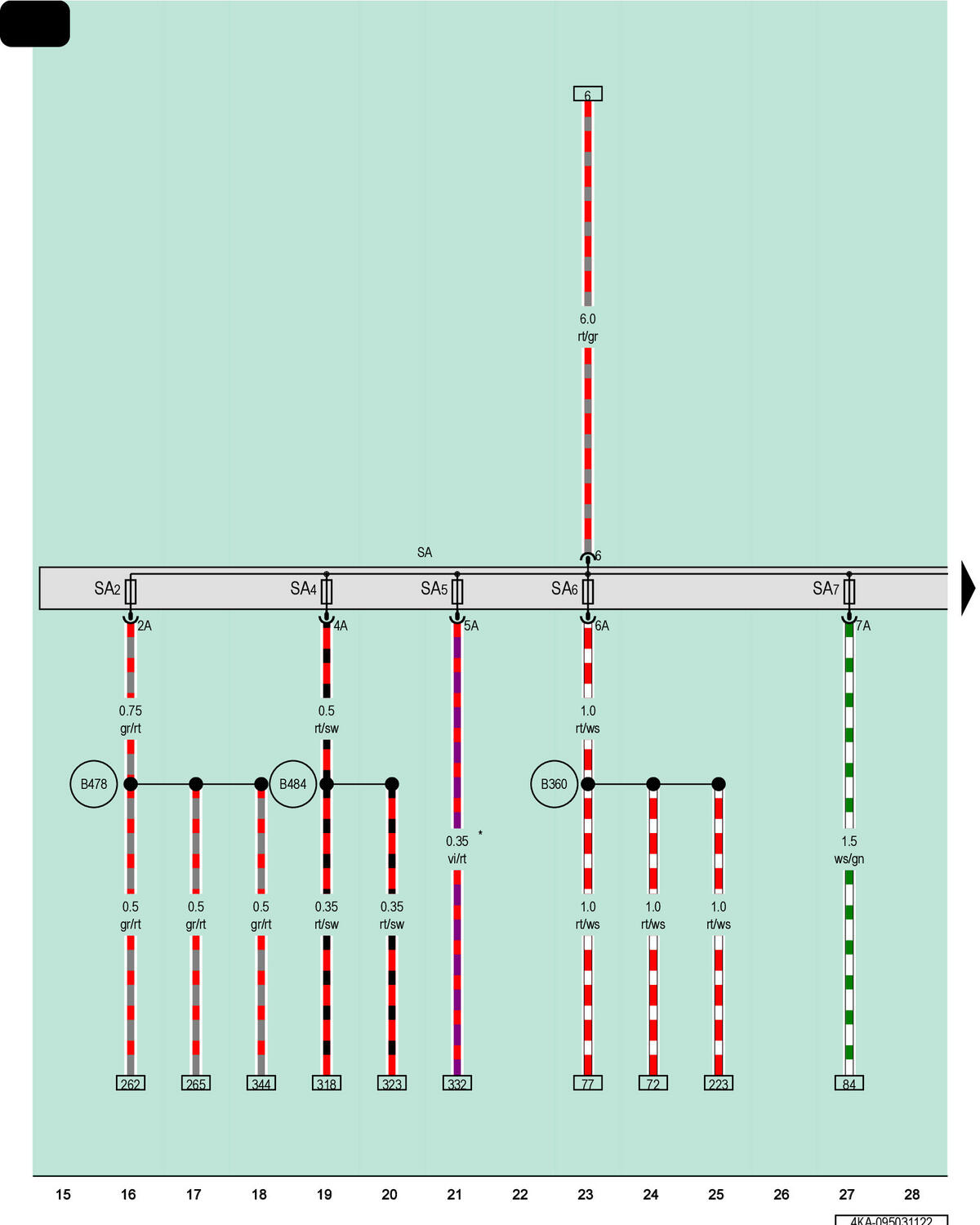

Fuse Panel A

Courtesy of AUDI OF AMERICA, LLC

SA

Fuse Panel A

SA2

Fuse 2 (On Fuse Panel A)

SA4

Fuse 4 (On Fuse Panel A)

SA5

Fuse 5 (On Fuse Panel A)

SA6

Fuse 6 (On Fuse Panel A)

SA7

Fuse 7 (On Fuse Panel A)

B360

Positive Connection 11 (87a) (in Main Wiring Harness)

B478

Connection 14 (in Main Wiring Harness)

B484

Connection 20 (in Main Wiring Harness)

*

For Vehicles Without Traffic Jam Pilot
