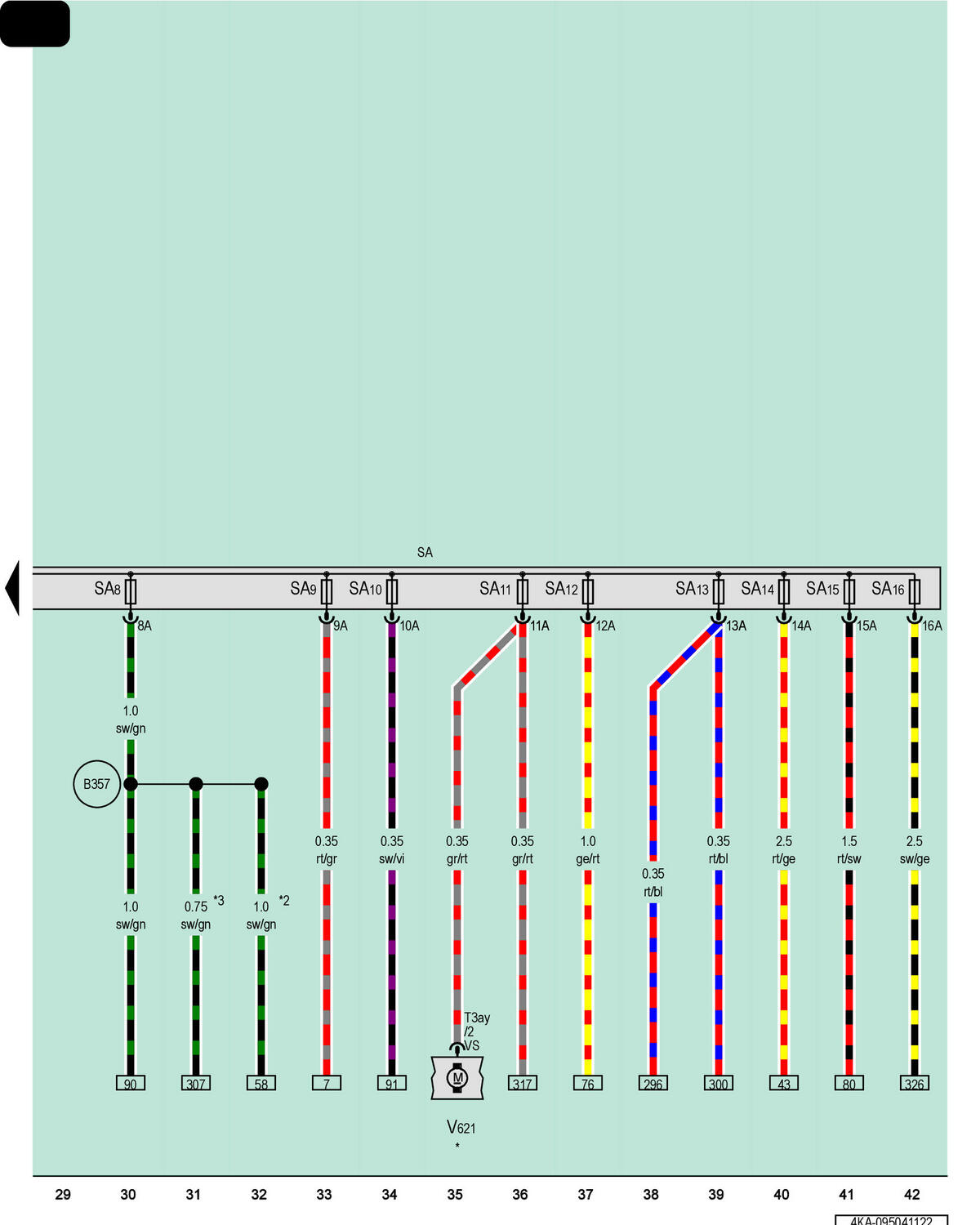

Fuse Panel A, Starter Generator Coolant Pump

Courtesy of AUDI OF AMERICA, LLC

SA

Fuse Panel A

SA8

Fuse 8 (On Fuse Panel A)

SA9

Fuse 9 (On Fuse Panel A)

SA10

Fuse 10 (On Fuse Panel A)

SA11

Fuse 11 (On Fuse Panel A)

SA12

Fuse 12 (On Fuse Panel A)

SA13

Fuse 13 (On Fuse Panel A)

SA14

Fuse 14 (On Fuse Panel A)

SA15

Fuse 15 (On Fuse Panel A)

SA16

Fuse 16 (On Fuse Panel A)

T3ay

3-Pin Connector, Black

V621

Starter Generator Coolant Pump

B357

Positive Connection 8 (87a) (in Main Wiring Harness)

*

Refer to Applicable Battery Wiring Diagram

*2

Omitted as a Running Change

*3

Depending on Equipment
