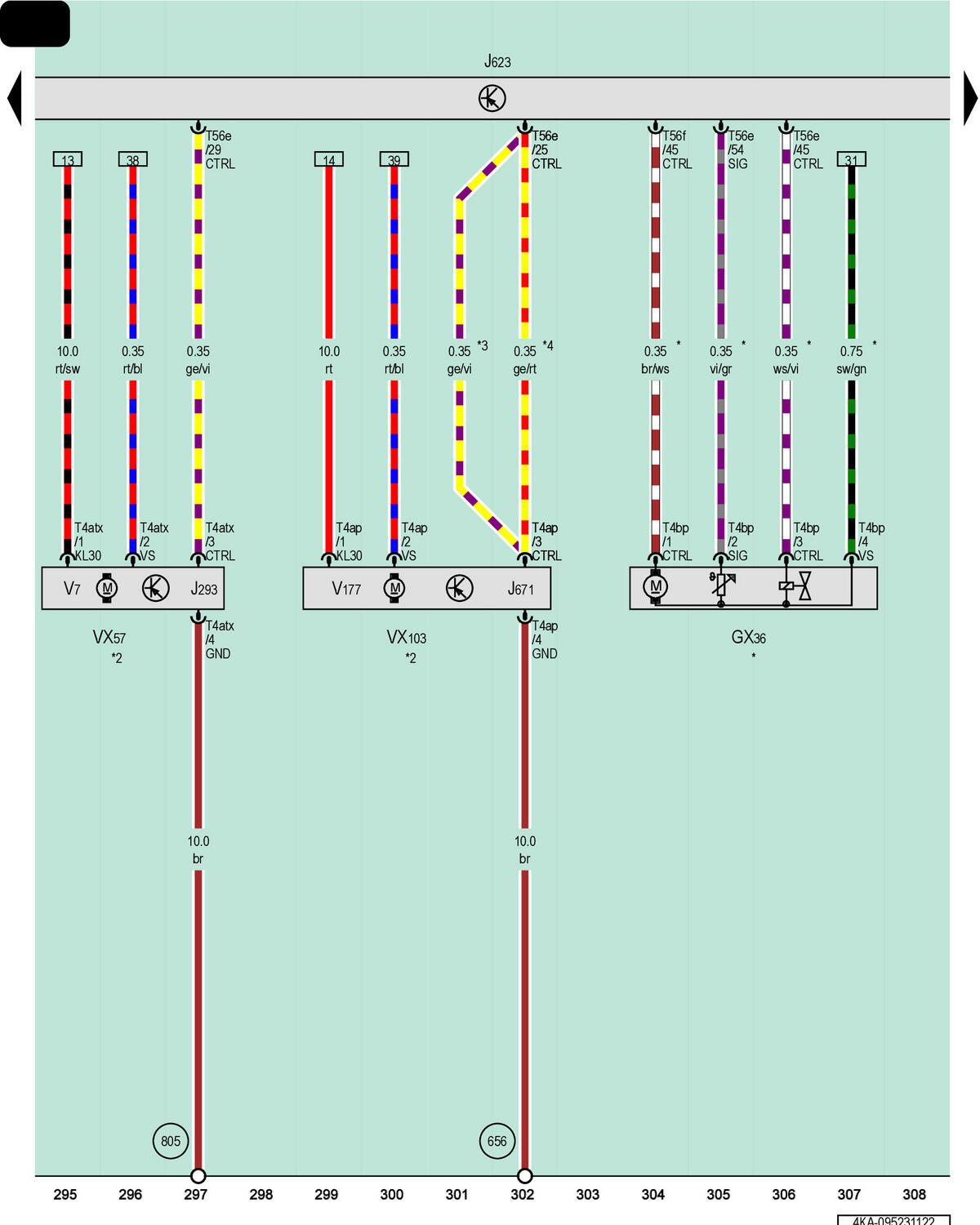

Fuel Tank Leak Detection Module, Engine/Motor Control Module, Radiator Fan, Radiator Fan 2

Courtesy of AUDI OF AMERICA, LLC

GX36

Fuel Tank Leak Detection Module

J293

Radiator Fan Control Module

J623

Engine/Motor Control Module

J671

Radiator Fan Control Module 2

T4ap

4-Pin Connector, Black

T4atx

4-Pin Connector, Black

T4bp

4-Pin Connector, Black

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

V7

Radiator Fan

VX57

Radiator Fan

VX103

Radiator Fan 2

V177

Radiator Fan 2

656

Ground Connection on Right Headlamp

805

Ground Connection 2 on Right Headlamp

*

Depending on Equipment

*2

Pre-Wired Component

*3

Omitted as a Running Change

*4

Running Change
