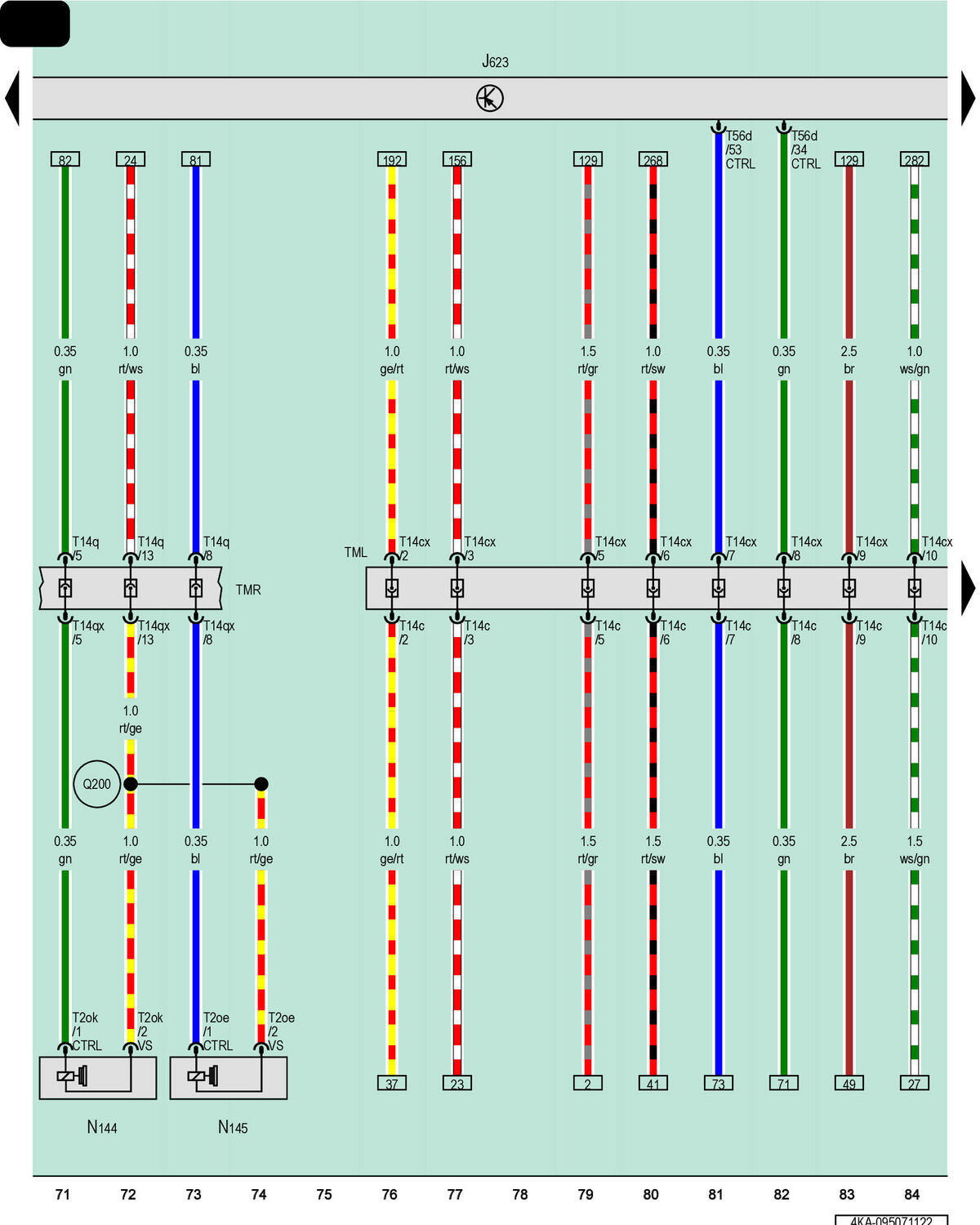

Engine/Motor Control Module, Left ELECTROHYDRAULIC Engine Mount Solenoid Valve, Right ELECTROHYDRAULIC Engine Mount Solenoid Valve

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

N144

Left Electrohydraulic Engine Mount Solenoid Valve

N145

Right Electrohydraulic Engine Mount Solenoid Valve

T2oe

2-Pin Connector, Naturally Cloudy

T2ok

2-Pin Connector, Naturally Cloudy

T14c

14-Pin Connector, Black

T14cx

14-Pin Connector, Black

T14q

14-Pin Connector, Black

T14qx

14-Pin Connector, Black

T56d

56-Pin Connector, Black, Purple

TML

Coupling Point in Engine/Motor Compartment, Left

TMR

Coupling Point in Engine/Motor Compartment, Right

Q200

Connection in Electromechanical Steering Wiring Harness
