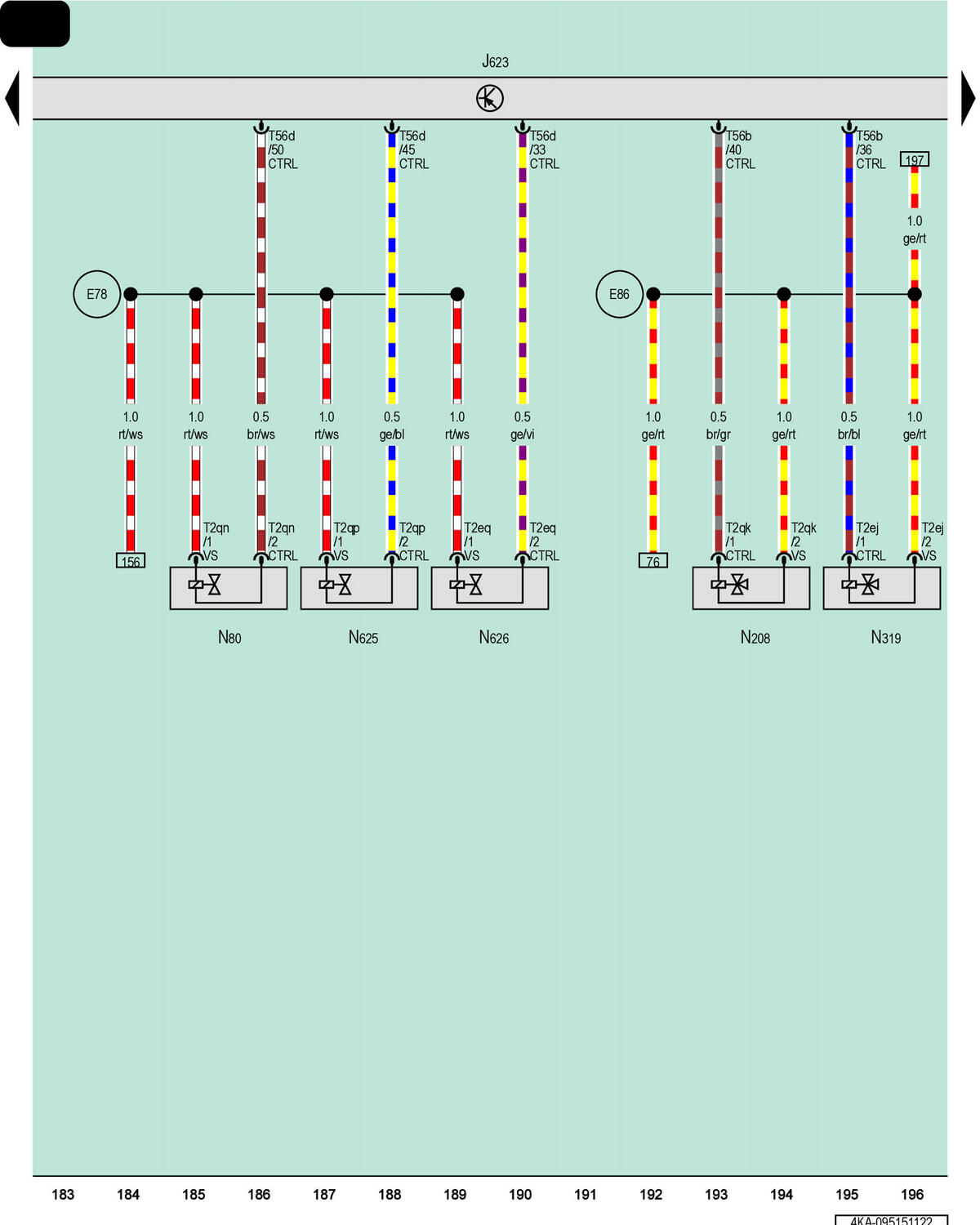

Engine/Motor Control Module, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 2, Exhaust Camshaft Adjustment Valve 2, RECIRCULATION Valve, Bank 1, RECIRCULATION Valve, Bank 2

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

N80

EVAP Canister Purge Regulator Valve 1

N208

Camshaft Adjustment Valve 2

N319

Exhaust Camshaft Adjustment Valve 2

N625

Recirculation Valve, Bank 1

N626

Recirculation Valve, Bank 2

T2ej

2-Pin Connector, Black

T2eq

2-Pin Connector, Black

T2qk

2-Pin Connector, Black

T2qn

2-Pin Connector, Black

T2qp

2-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple

E78

Connection 87a (in Engine Wiring Harness) 2

E86

Connection 87a (in Engine Wiring Harness) 10
