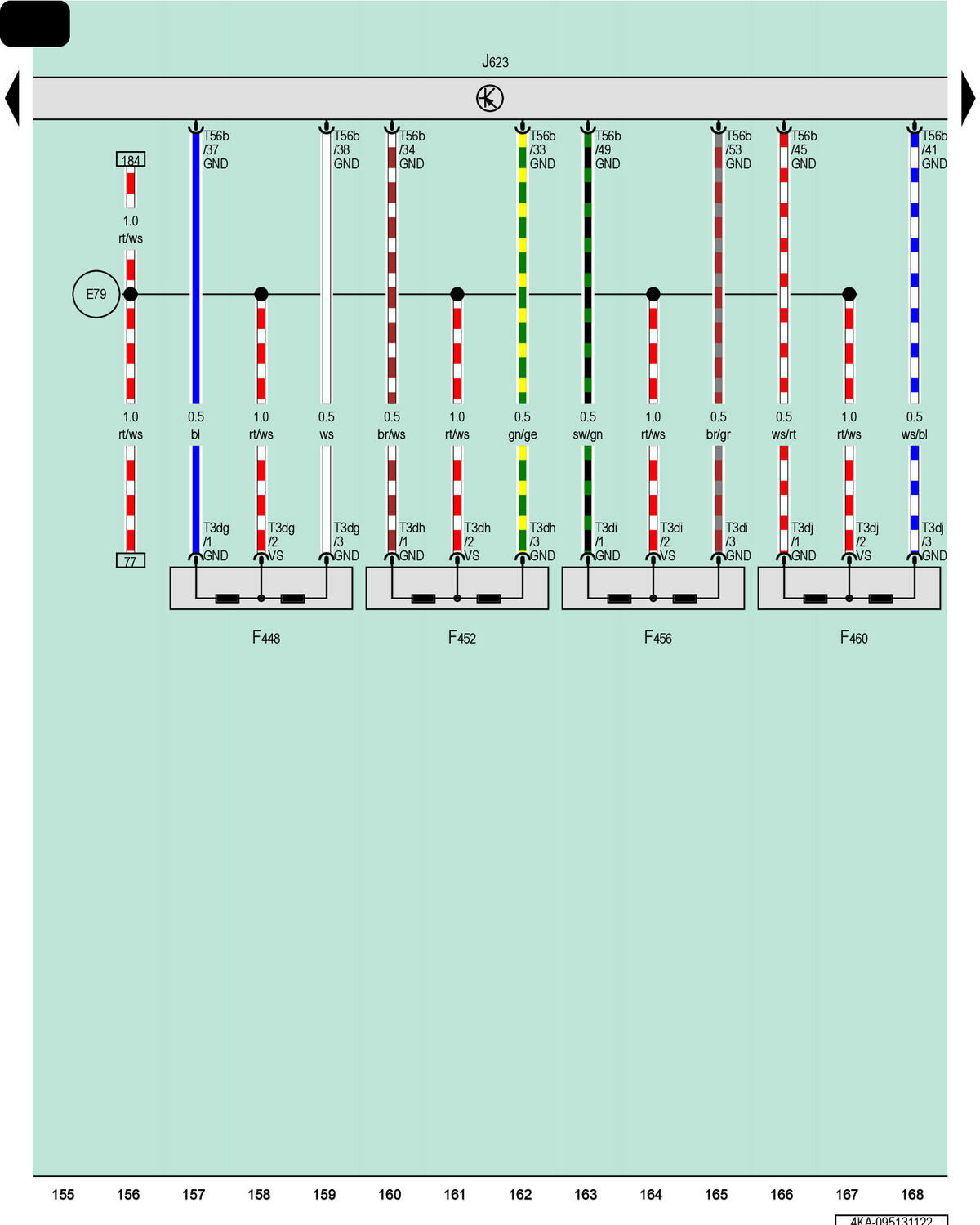

Cylinder 1 Intake Cam Actuator 1, Cylinder 2 Intake Cam Actuator 1, Cylinder 3 Intake Cam Actuator 1, Cylinder 4 Intake Cam Actuator 1, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

F448

Cylinder 1 Intake Cam Actuator 1

F452

Cylinder 2 Intake Cam Actuator 1

F456

Cylinder 3 Intake Cam Actuator 1

F460

Cylinder 4 Intake Cam Actuator 1

J623

Engine/Motor Control Module

T3dg

3-Pin Connector, Black

T3dh

3-Pin Connector, Black

T3di

3-Pin Connector, Black

T3dj

3-Pin Connector, Black

T56b

56-Pin Connector, Black, White

E79

Connection 87a (in Engine Wiring Harness) 3
