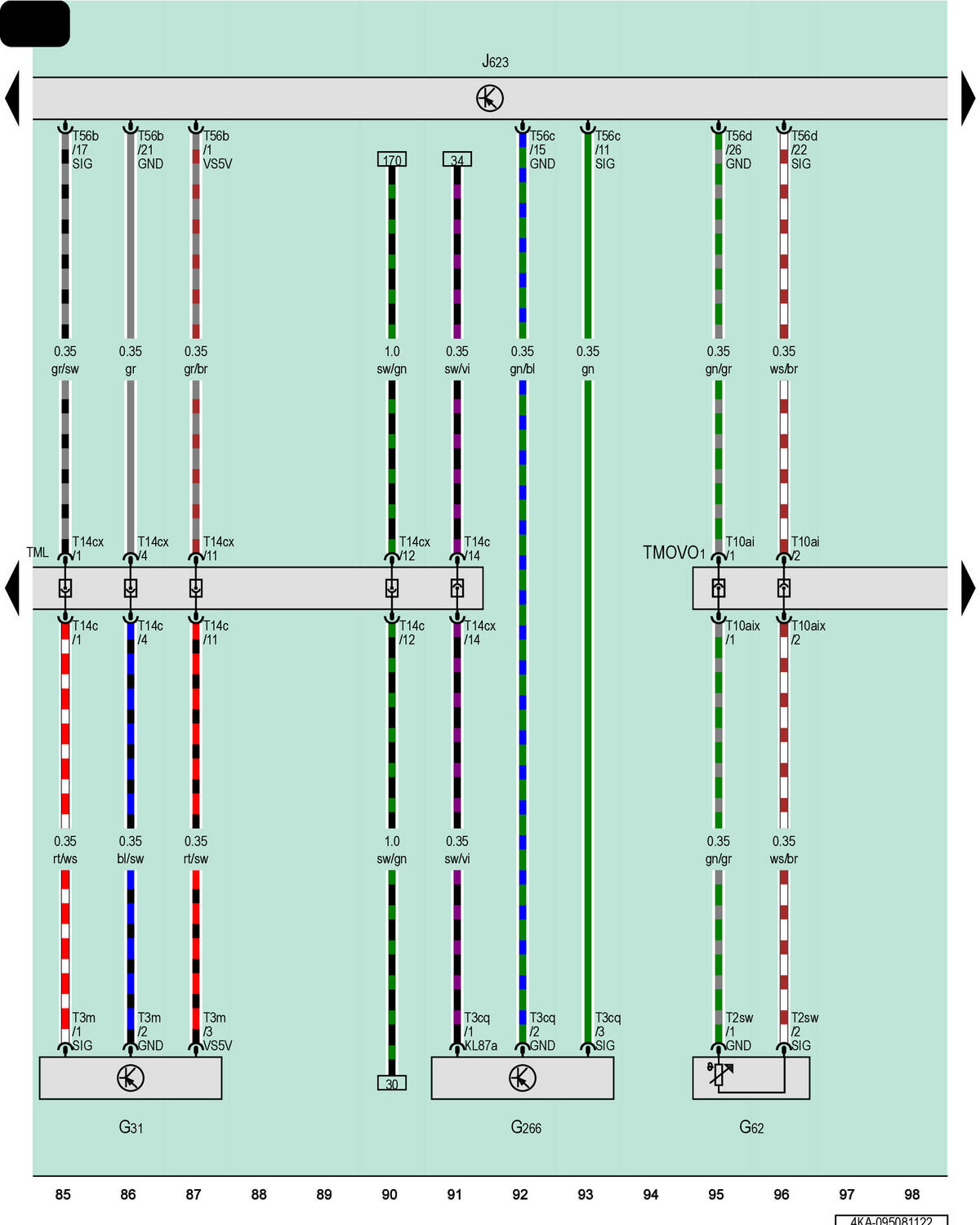

Charge Air Pressure Sensor, Engine Coolant Temperature Sensor, Oil Level Thermal Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G31

Charge Air Pressure Sensor

G62

Engine Coolant Temperature Sensor

G266

Oil Level Thermal Sensor

J623

Engine/Motor Control Module

T2sw

2-Pin Connector, Black

T3cq

3-Pin Connector, Black

T3m

3-Pin Connector, Black

T10ai

10-Pin Connector, Black

T10aix

10-Pin Connector, Black

T14c

14-Pin Connector, Black

T14cx

14-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple

TML

Coupling Point in Engine/Motor Compartment, Left

TMOVO1

Engine Pre-Wiring Coupling Point 1
