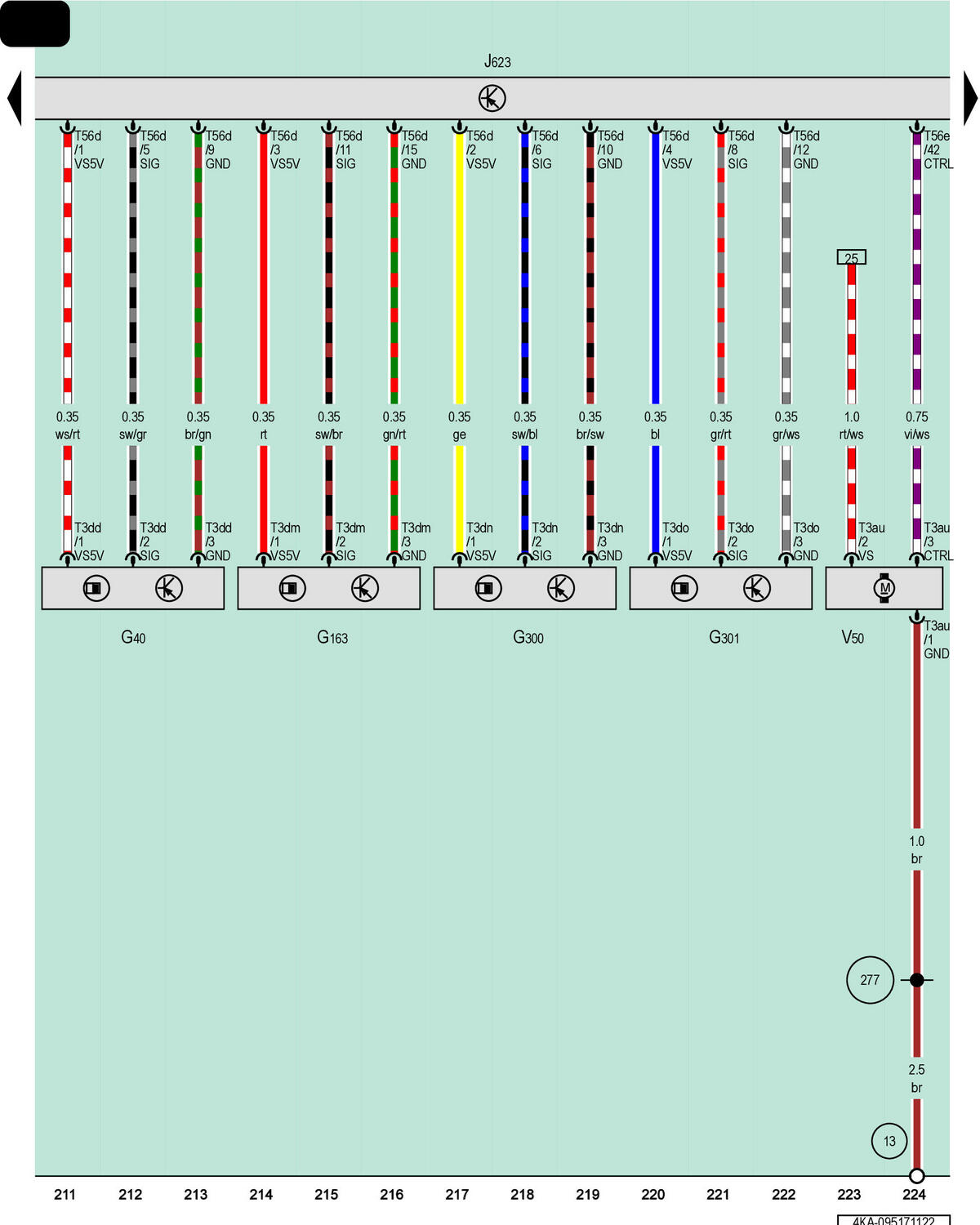

Camshaft Position Sensor, Camshaft Position Sensor 2, Camshaft Position Sensor 3, Camshaft Position Sensor 4, Engine/Motor Control Module, Coolant RECIRCULATION Pump

Courtesy of AUDI OF AMERICA, LLC

G40

Camshaft Position Sensor

G163

Camshaft Position Sensor 2

G300

Camshaft Position Sensor 3

G301

Camshaft Position Sensor 4

J623

Engine/Motor Control Module

T3au

3-Pin Connector, Black

T3dd

3-Pin Connector, Black

T3dm

3-Pin Connector, Black

T3dn

3-Pin Connector, Black

T3do

3-Pin Connector, Black

T56d

56-Pin Connector, Black, Purple

T56e

56-Pin Connector, Black, Green

V50

Coolant Recirculation Pump

13

Ground Connection in Engine/Motor Compartment, Right

277

Ground Connection 3 (in Interior Wiring Harness)
