Battery A, Charging
Risk of explosion due to discharged battery with "visual indicator".
Severe injury is possible.
- If the display of the "visual indicator" is colorless or light yellow, do not check, charge or jump start the battery.
- Replace the battery.
Procedure
Tip
It is recommended that the battery is charged when installed and connected. This is the only way to ensure the charge current is incorporated into the capacity calculation for the Battery Monitoring Control Module -J367-.
Before the battery charger can be connected, the following preliminary work is necessary:
-- Turn off the ignition and all electrical equipment.

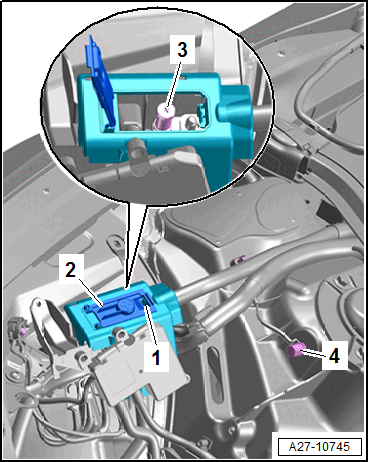

-- Release the retainer -1-.
-- Open the covers -2-.
-- Connect the red charging clamp "+" of the battery charger to the positive terminal -3-.
-- Connect the black charging clamp "-" of the battery charger to the negative terminal -4-.
-- Start the battery charging process. Refer to => Owner's Manual - Battery Charger.
