Overview - Seat Angle Adjuster

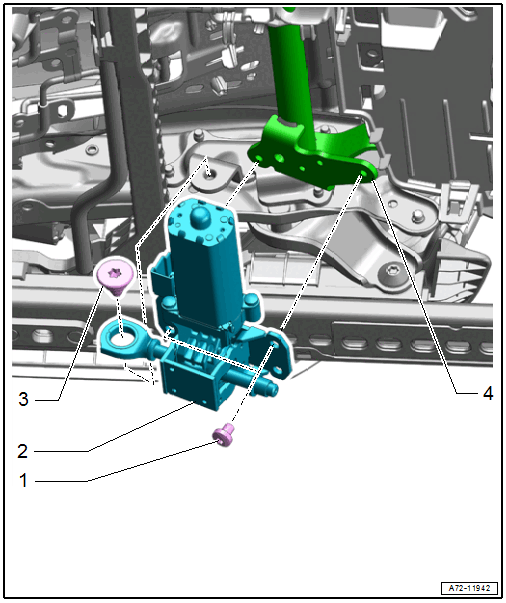

Fig 1: Exploded View Of Seat Pan, Seat Angle Adjuster

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- Not available separately from the repair kit. Refer to the Parts Information.
- Self-locking
- Always replace after removing
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
- 10 Nm
Seat Angle Adjustment Motor
- Removing and installing. Refer to SEAT ANGLE ADJUSTER, REMOVING AND INSTALLING .
Bolt
- Self-locking
- Not available separately from the repair kit. Refer to the Parts Information.
- Always replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
- 20 Nm
Adjustment Shaft
