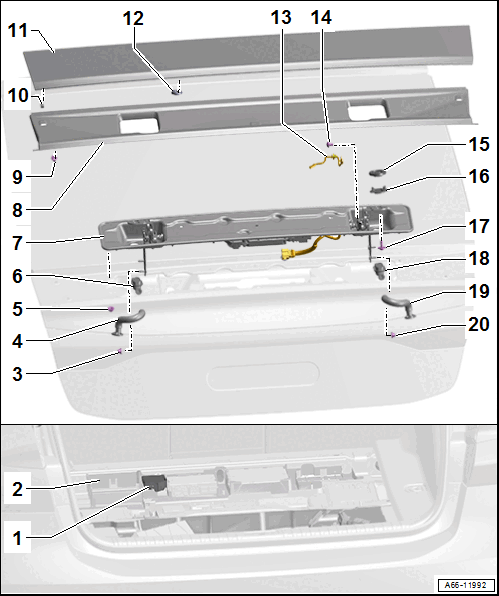

Overview - Spoiler, A7 SPORTBACK

Courtesy of AUDI OF AMERICA, LLC

1. Rear Spoiler Control Module -J223-
   • Removing and Installing. Refer to Rear Spoiler Control Module -J223-, REMOVING AND INSTALLING .
2. Mount
   • For rear spoiler control module
3. Nut
   • 8 Nm
   • Depending on the version: with reinforcing angle
   • Quantity: 2
4. Water Drain Hose
   • When attaching to the mount -item 6-, pay attention to the markings.
5. Nut
   • Tightening specification and sequence. Refer to Fig 1.
   • Always replace after removing
   • Quantity: 14
6. Mount
   • For the water drain
7. Mount with Spoiler Drive Unit
   • Replace the mount if the seal is damaged
   • Depending on the version: with reinforcing angle
   • With seal
   • Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
   • Spoiler module, removing and installing with faulty drive unit for the spoiler. Refer to SPOILER MODULE, REMOVING AND INSTALLING WITH FAULTY DRIVE UNIT FOR SPOILER, A7 SPORTBACK
8. Spoiler Cover
   • Always replace after removing
   • Removing and Installing. Refer to SPOILER COVER, REMOVING AND INSTALLING .
9. Clip
   • With foam seal
   • Quantity: 9
10. Buffer
    • Always replace after removing
    • Quantity: 3
    • The vehicle and buffer must be at room temperature.
    • Clean the adhesive surface on the spoiler with Cleaning Solution. Refer to the Parts Information.
    • Place on the marking and press firmly
11. Spoiler Blade
    • Removing and Installing. Refer to SPOILER BLADE, REMOVING AND INSTALLING .
12. Plug
    • Quantity: 2
    • For the 30 mm diameter hole
    • Insert on the inside in the spoiler
13. Rear Spoiler Stop Switch 1 -F135-
14. Bolt
    • 2 Nm
15. Foam Seal
    • Always replace after removing
    • Self-adhesive
    • In -item 16-
16. Adjuster
    • Equipped with a new foam seal -item 15- and clipped in the spoiler
    • Adjusting. Refer to SPOILER, ADJUSTING .
17. Bolt
    • 8 Nm
    • Always replace after removing
    • Quantity: 2
18. Mount
    • For the water drain
19. Water Drain Hose
    • When attaching to the mount -item 18-, pay attention to the markings.
20. Nut
    • 8 Nm
    • Quantity: 2

Spoiler - Tightening Specification and Sequence

Fig 1: Spoiler - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts in the sequence shown to 2 Nm.
