Overview - Instrument Panel

Overview - Instrument panel cover and attachments

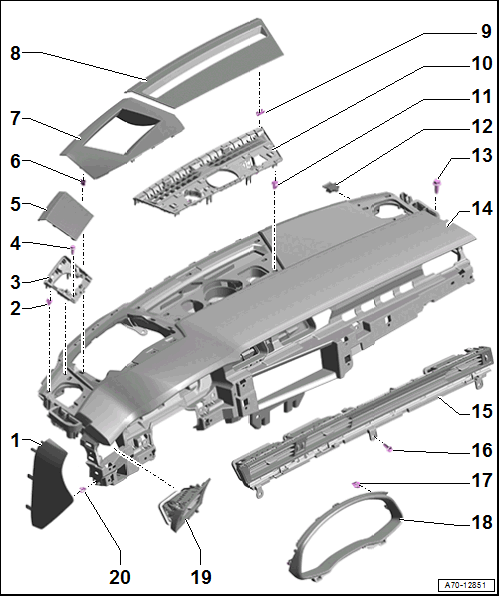

Fig 1: Exploded View Of Instrument Panel Cover And Attachments

Courtesy of AUDI OF AMERICA, LLC

1. Instrument Panel Side Cover
   • Refer to Instrument Panel Side Cover, Removing and Installing  .
2. Clip
   • Insert into the mount
   • Replace damaged or deformed clips
   • Quantity: 2
3. Speaker Mount
   • Refer to Speaker Mount, Removing and Installing  .
4. Bolt
   • 3 Nm
5. Driver Side Speaker Trim
   • Refer to Speaker Trim, Removing and Installing  .
6. Clip
   • Insert it in the windshield projection cover
   • Replace damaged or deformed clips
   • Quantity: 7
7. Windshield Projection Cover
   • Equipped on some models
   • Refer to Instrument Panel/Windshield Projection (Head-Up Display) Cover, Removing and Installing  .
8. Center Speaker Trim
   • Refer to Speaker Trim, Removing and Installing  .
9. Spring Clamp
   • Replace damaged or deformed clips
   • Quantity: 16
10. Front Center Defroster Vent
    • Refer to Front Center Defroster Vent, Removing and Installing  .
11. Clip
    • Replace damaged or deformed clips
    • Quantity: 9
12. Rubber Buffer
    • Insert into the instrument panel mount at the bottom of the windshield frame
    • Quantity: 3
13. Bolt
    • Quantity: 11
    • 3 Nm
14. Instrument Panel
    • Refer to Instrument Panel, Removing and Installing  .
15. Center Vent / Outer Front Passenger Side Instrument Panel Vent
    • Refer to Center Vent, Removing and Installing  .
16. Bolt
    • Quantity: 2
    • 3 Nm
17. Clip
    • Replace damaged or deformed clips
    • Quantity: 5
18. Instrument Cluster Trim
    • Refer to Instrument Cluster Trim, Removing and Installing  .
19. Driver Side Outer Instrument Panel Vent
    • Refer to Outer Instrument Panel Vent, Removing and Installing  .
20. Clip
    • Replace damaged or deformed clips
    • Quantity: 4

Overview - instrument panel decorative trim and attachments

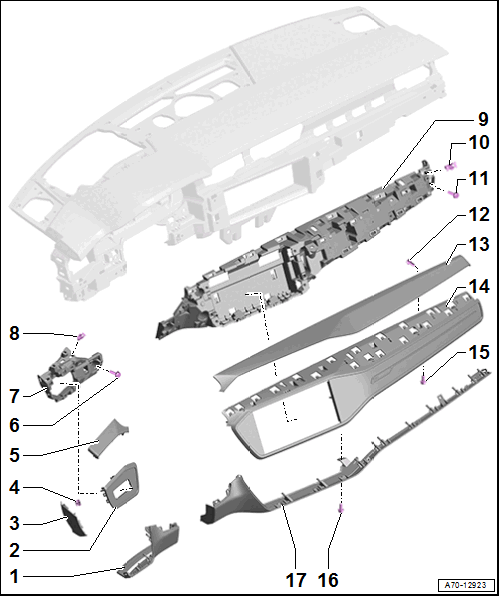

Fig 2: Exploded View Of Instrument Panel Decorative Trim And Attachments

Courtesy of AUDI OF AMERICA, LLC

1. Driver Side Instrument Panel Lower Decorative Trim
   • Refer to INSTRUMENT PANEL LOWER DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE
2. Driver Side Instrument Panel Center Decorative Trim
   • Refer to INSTRUMENT PANEL CENTER DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE
3. Instrument Panel Side Decorative Trim
   • Refer to INSTRUMENT PANEL SIDE DECORATIVE TRIM, REMOVING AND INSTALLING
4. Spring Clamp
   • Replace damaged or deformed clips
5. Driver Side Instrument Panel Upper Decorative Trim
   • Refer to INSTRUMENT PANEL UPPER DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE
6. Bolt
   • Quantity: 3
   • 3 Nm
7. Driver Side Decorative Trim Support
   • Refer to DRIVER SIDE DECORATIVE TRIM BRACKET, REMOVING AND INSTALLING
8. Clip
   • Replace damaged or deformed clips
9. Front Passenger Side Decorative Trim Support
   • Refer to FRONT PASSENGER SIDE DECORATIVE TRIM BRACKET, REMOVING AND INSTALLING
10. Clip
    • Replace damaged or deformed clips
11. Bolt
    • Quantity: 7
    • 3 Nm
12. Bolt
    • Quantity: 5
    • 1 Nm
13. Front Passenger Side Instrument Panel Upper Decorative Trim
    • Refer to INSTRUMENT PANEL UPPER DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE
14. Front Passenger Side Instrument Panel Center Decorative Trim
    • Refer to INSTRUMENT PANEL CENTER DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE
15. Bolt
    • Quantity: 2
    • 3 Nm
16. Bolt
    • Quantity: 3
    • 3 Nm
17. Front Passenger Side Instrument Panel Lower Decorative Trim
    • Refer to INSTRUMENT PANEL LOWER DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE
