Adjustment Dimensions

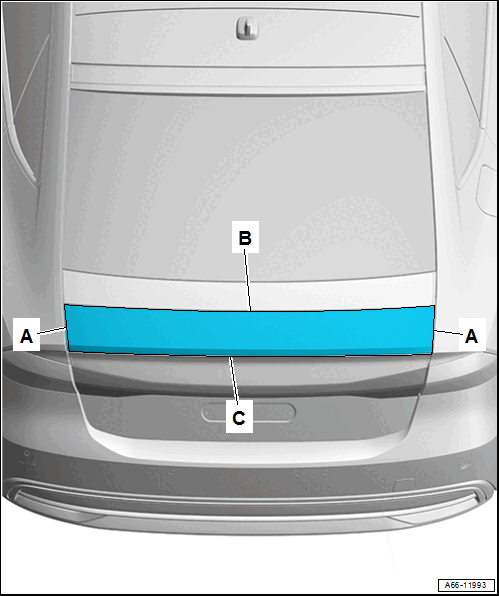

GWWA66-11993Courtesy of AUDI OF AMERICA, LLC
  1. A -  Spoiler to Side Panel
    • Gap dimension = 3.2 mm
  2. B -  Spoiler to Rear Lid
    • Gap dimension = 2.0 mm
  3. C -  Spoiler to Rear Lid
    • Gap dimension = 3.6 mm
