Rear Spoiler Control Module -J223-, REMOVING AND INSTALLING: Removing

• If the Rear Spoiler Control Module -J223- is replaced, select the "control module, replacing" function for the respective control module. Refer to ELECTRICAL COMPONENTS .

-- Remove the rear panel sill frame. Refer to REAR PANEL SILL FRAME, REMOVING AND INSTALLING .

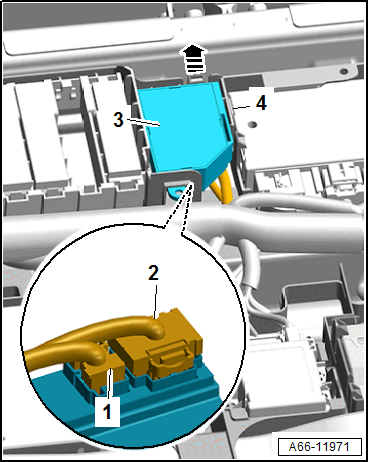

-- Release the retainer in direction of -arrow- and remove the control module -3- from the mount -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1 and 2-.
