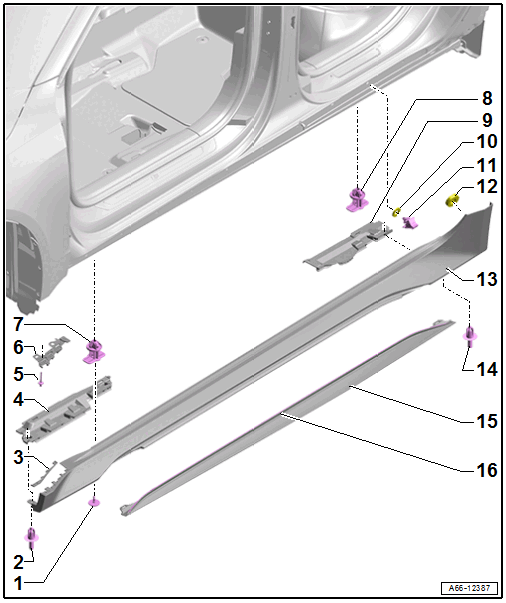

Overview - Side Sill Trim Panel, RS6, RS7 SPORTBACK

Courtesy of AUDI OF AMERICA, LLC

1. Quick Release
   • Quantity: 7
2. Expanding Rivet
   • Quantity: 2
3. Trim
   • For the side sill trim panel
4. Front Intermediate Piece
   • For attaching the side sill trim panel
5. Rivets
   • Quantity: 4
6. Front Bracket
   • For the side sill trim panel
7. Front Mount
   • Quantity: 6
8. Rear Mount
9. Rear Intermediate Piece
   • For attaching the side sill trim panel
10. Seal
    • Quantity: 10
11. Bracket
    • Always replace after removing
    • For the side sill trim panel
    • Quantity: 10
    • Removing and Installing. Refer to Installing Insert the rear bracket -3- in the side sill trim panel cut-out -2-. .
12. Seal
13. Side Sill Trim Panel
    • Removing and Installing. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING .
14. Expanding Rivet
    • Quantity: 2
15. Decorative Trim
    • Removing and Installing. Refer to SIDE SILL TRIM PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, RS6, RS7 SPORTBACK .
16. Adhesive Tape
    • Always replace after removing
