Charger Heat Shield, Removing And Installing: Removing

-- Remove the rear muffler. Refer to MUFFLER, REMOVING AND INSTALLING .

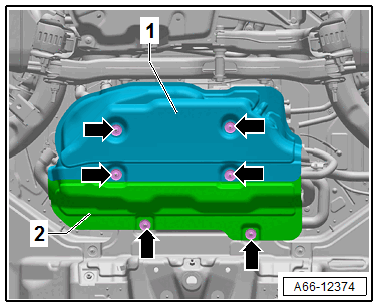

-- Remove the spring nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the heat shields -1 and 2-.
