Center Tunnel Heat Shield, Removing And Installing: Removing

-- Remove the transmission. Refer to TRANSMISSION, REMOVING .

-- Remove the heat shields for the front tunnel. Refer to HEAT SHIELD FOR FRONT TUNNEL, REMOVING AND INSTALLING .

-- Remove the heat shields for the rear tunnel. Refer to HEAT SHIELD FOR REAR TUNNEL, REMOVING AND INSTALLING .

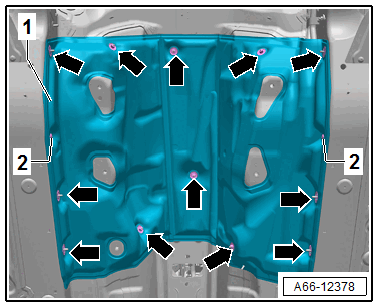

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock washer and nuts -arrows-.

-- Remove the heat shield -1-.
