Back-Up Alert H29, Removing And Installing: Removing

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

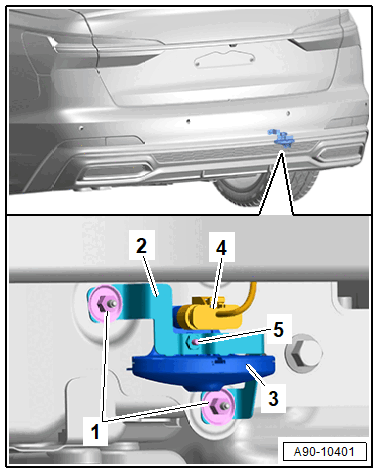

-- Disconnect the connector -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1-.

-- Remove the Back-Up Alert -H29- -3- together with the bracket -2-.

-- Remove the bolt -5- on the backside.

-- Remove the back-up alert -3- from the bracket -2-.
