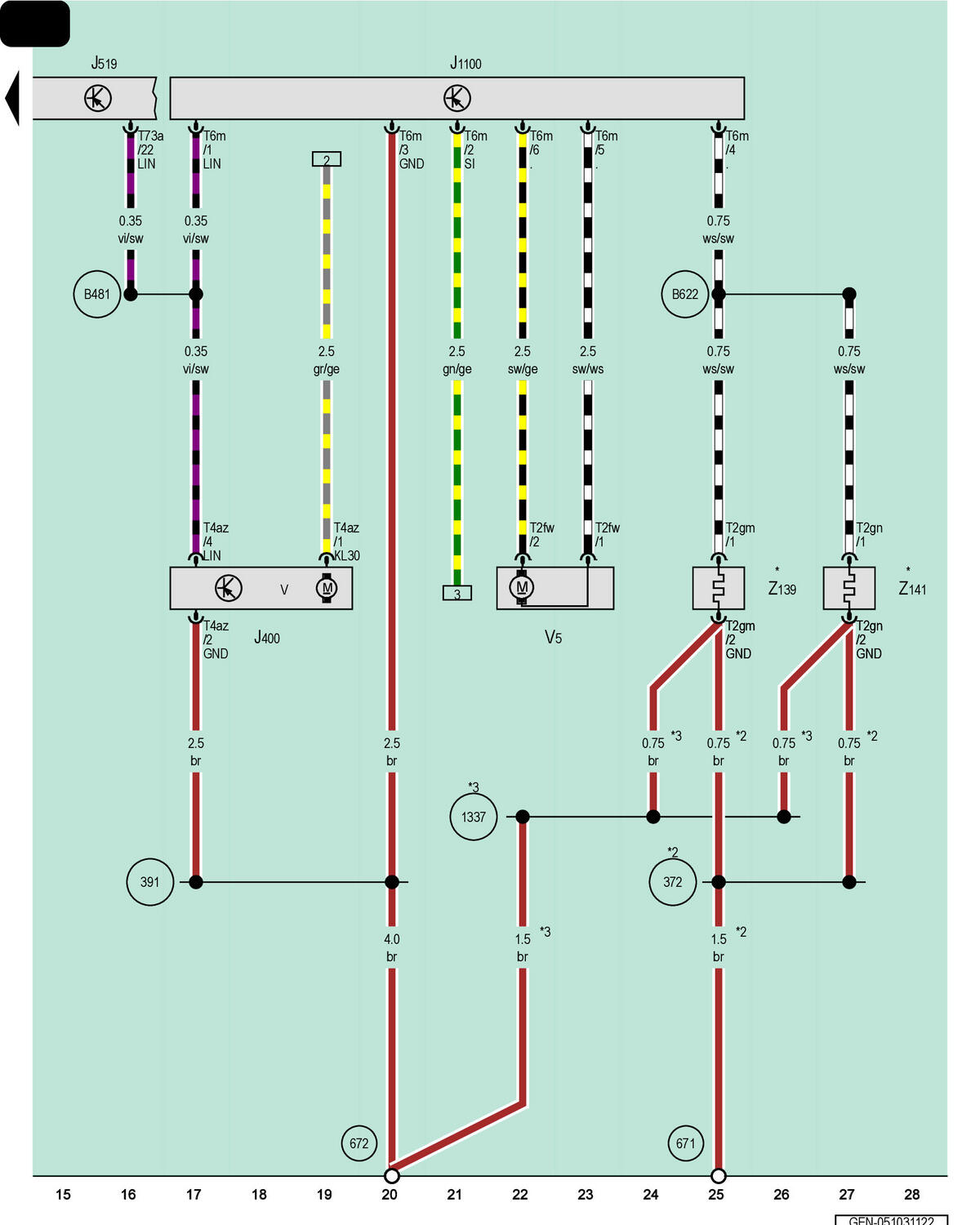

Wiper Motor Control Module, Vehicle Electrical System Control Module, Windshield Washer Pump Control Module, Windshield Washer Pump, Thermal Resistor 1 In Driver Side Windshield Wiper Arm, Thermal Resistor 1 In Front Passenger Side Windshield Wiper Arm
J400
Wiper Motor Control Module
J519
Vehicle Electrical System Control Module
J1100
Windshield Washer Pump Control Module
T2fw
2-Pin Connector, Black
T2gm
2-Pin Connector, Black
T2gn
2-Pin Connector, Black
T4az
4-Pin Connector, Black
T6m
6-Pin Connector, Black
T73a
73-Pin Connector, Black
V
Windshield Wiper Motor
V5
Windshield Washer Pump
Z139
Thermal Resistor 1 in Driver Side Windshield Wiper Arm
Z141
Thermal Resistor 1 in Front Passenger Side Windshield Wiper Arm
372
Ground Connection 7 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
671
Ground Connection 1 on Left Front Longitudinal Member
672
Ground Connection 2 on Left Front Longitudinal Member
1337
Ground Connection 39 (in Main Wiring Harness)
B481
Connection 17 (in Main Wiring Harness)
B622
Windshield Wiper Connection (in Main Wiring Harness)
*
Pre-Wired Component
*2
Omitted as a Running Change
*3
Running Change
