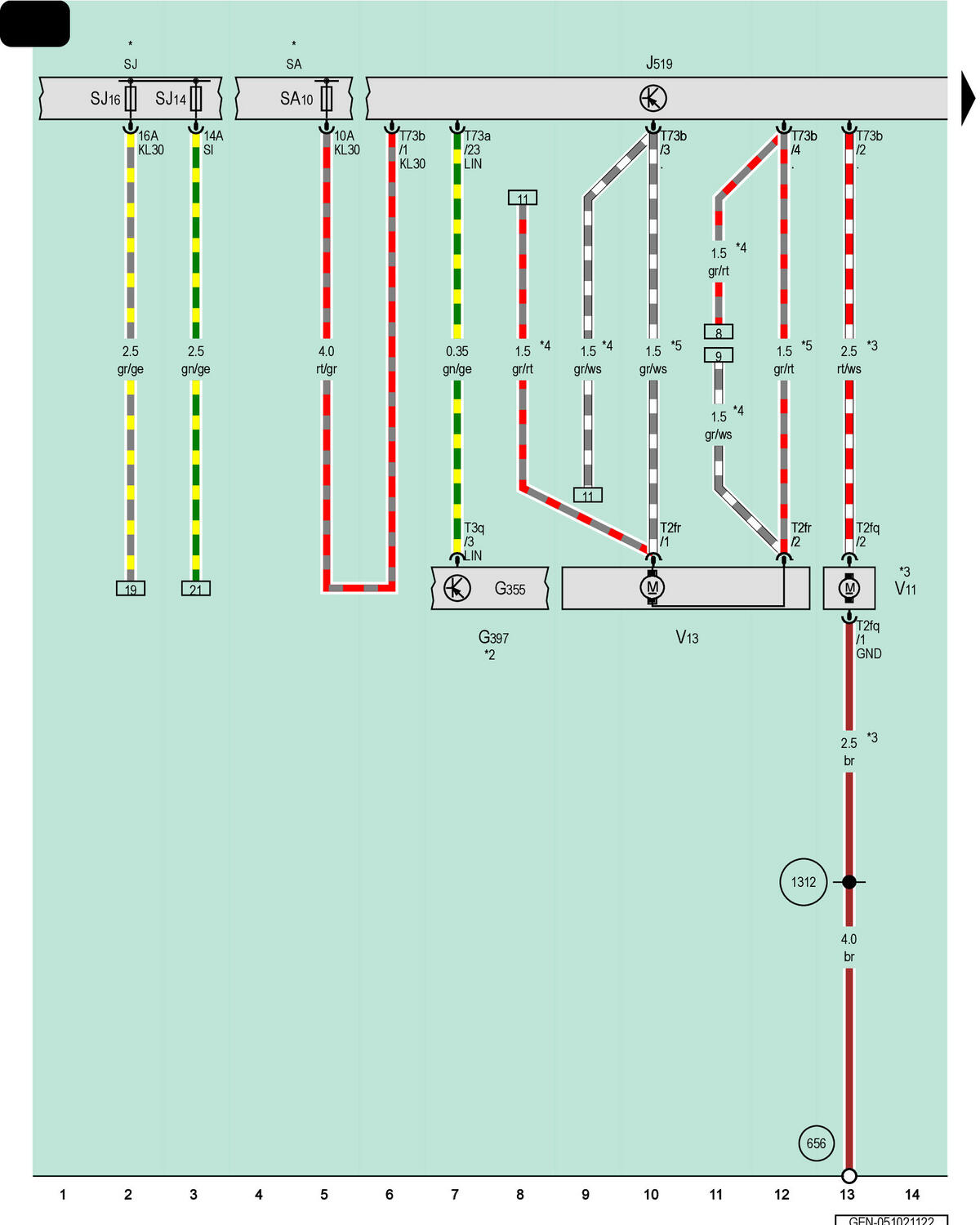

Rain/Light Recognition Sensor, Vehicle Electrical System Control Module, Headlamp Washer System Pump, Rear Window Washer Pump
G355
Humidity Sensor
G397
Rain/Light Recognition Sensor
J519
Vehicle Electrical System Control Module
SA
Fuse Panel A
SA10
Fuse 10 (On Fuse Panel A)
SJ
Fuse Panel J
SJ14
Fuse 14 on Fuse Panel J
SJ16
Fuse 16 on Fuse Panel J
T2fq
2-Pin Connector, Black
T2fr
2-Pin Connector, Black
T3q
3-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
V11
Headlamp Washer System Pump
V13
Rear Window Washer Pump
656
Ground Connection on Right Headlamp
1312
Ground Connection 38 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Refer to the Applicable Interior Rearview Mirror Wiring Diagram
*3
For Vehicles with a Headlamp Washer System
*4
For Vehicles with Adaptive Cruise Control (ACC)
*5
For Vehicles with Cruise Control System
