Comfort System Central Control Module, Rear Window Wiper Motor

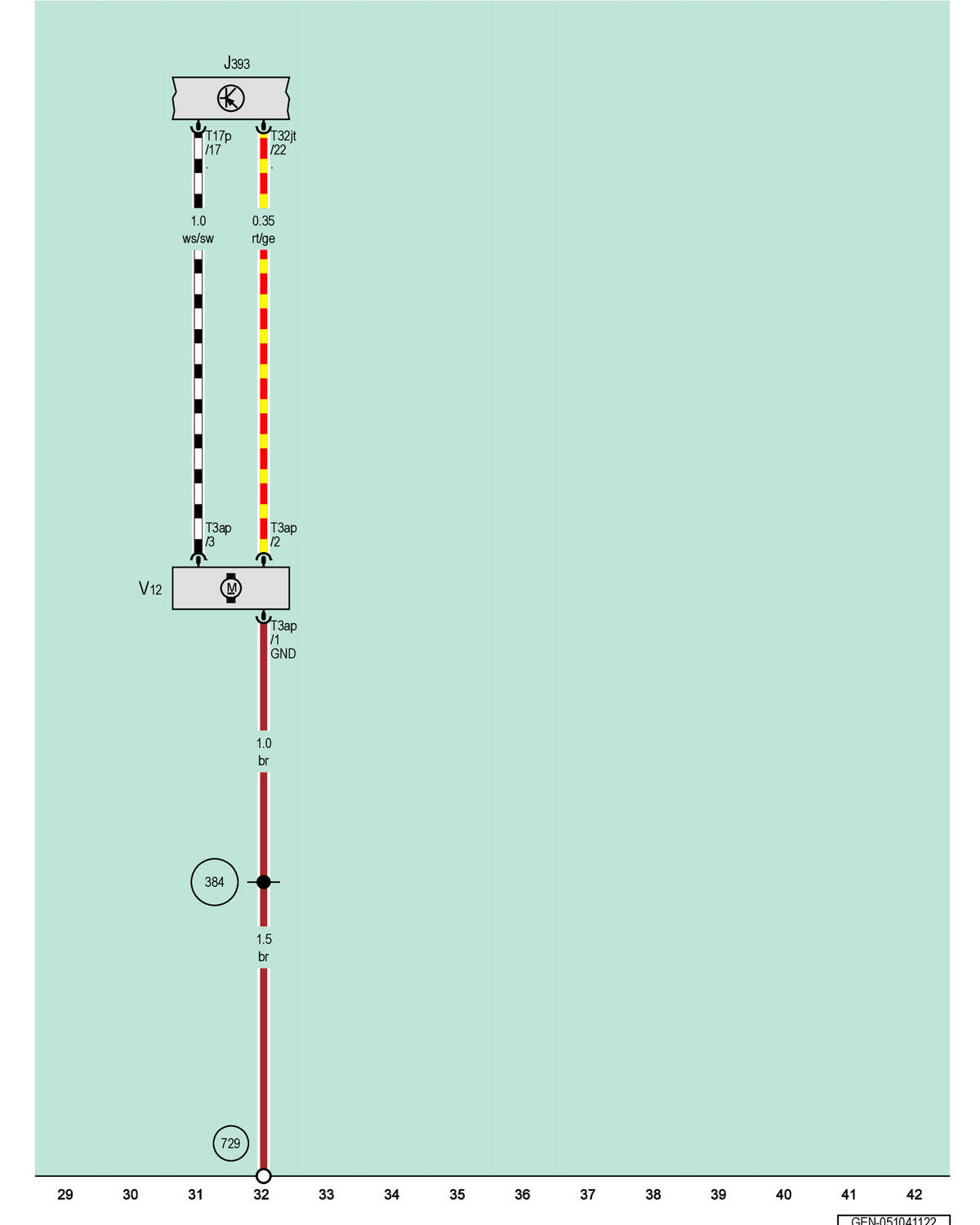

GWWGEN-051041122Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

T3ap

3-Pin Connector, Black

T17p

17-Pin Connector, Black

T32jt

32-Pin Connector, Black

V12

Rear Window Wiper Motor

384

Ground Connection 19 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing
