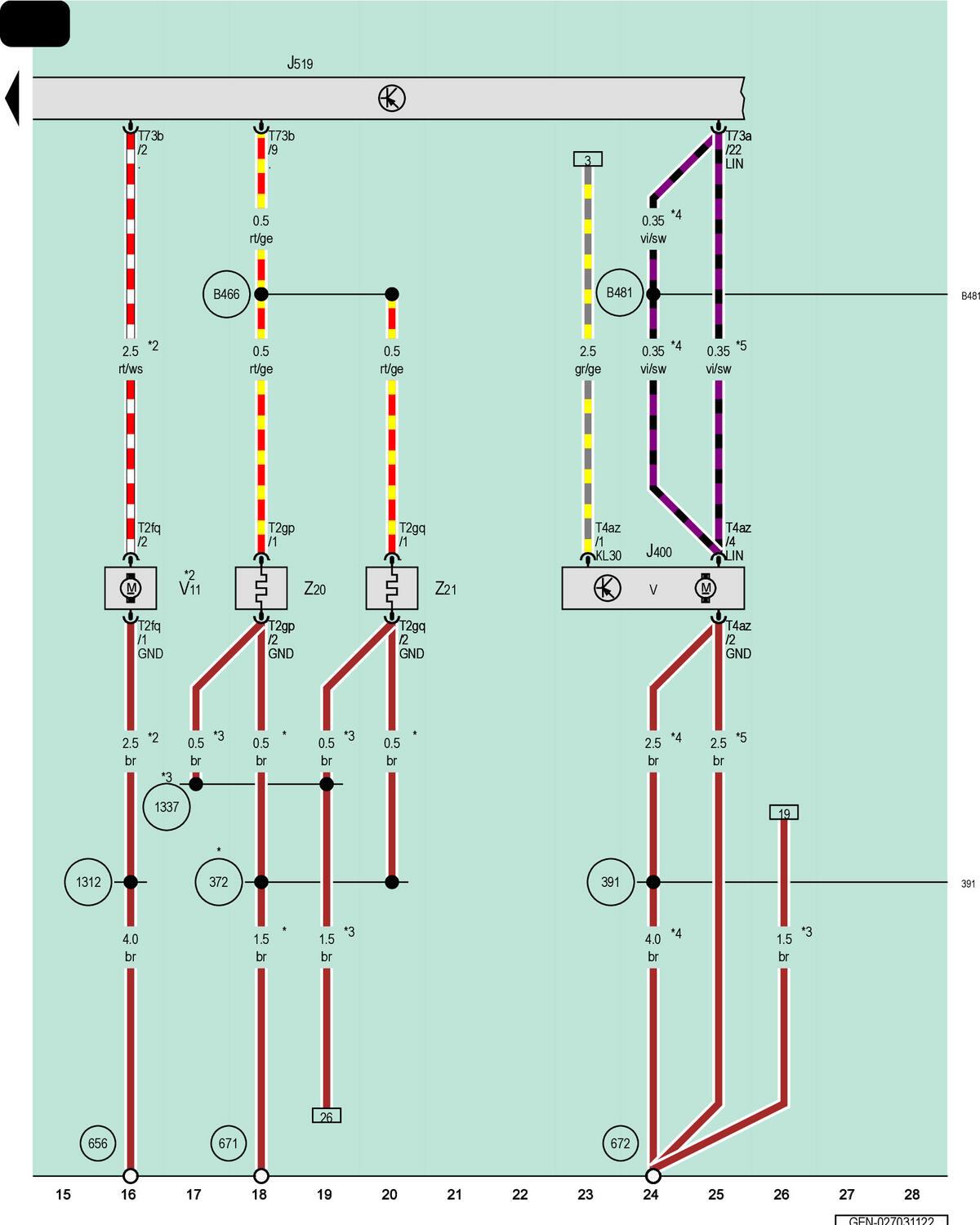

Wiper Motor Control Module, Vehicle Electrical System Control Module, Headlamp Washer System Pump, Left Washer Nozzle Heater, Right Washer Nozzle Heater
J400
Wiper Motor Control Module
J519
Vehicle Electrical System Control Module
T2fq
2-Pin Connector, Black
T2gp
2-Pin Connector, Black
T2gq
2-Pin Connector, Black
T4az
4-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
V
Windshield Wiper Motor
V11
Headlamp Washer System Pump
Z20
Left Washer Nozzle Heater
Z21
Right Washer Nozzle Heater
372
Ground Connection 7 (in Main Wiring Harness)
391
Ground Connection 26 (in Main Wiring Harness)
656
Ground Connection on Right Headlamp
671
Ground Connection 1 on Left Front Longitudinal Member
672
Ground Connection 2 on Left Front Longitudinal Member
1312
Ground Connection 38 (in Main Wiring Harness)
1337
Ground Connection 39 (in Main Wiring Harness)
B466
Connection 2 (in Main Wiring Harness)
B481
Connection 17 (in Main Wiring Harness)
*
Omitted as a Running Change
*2
For Vehicles with a Headlamp Washer System
*3
Running Change
*4
For Vehicles with Adaptive Cruise Control (ACC)
*5
For Vehicles with Cruise Control System
