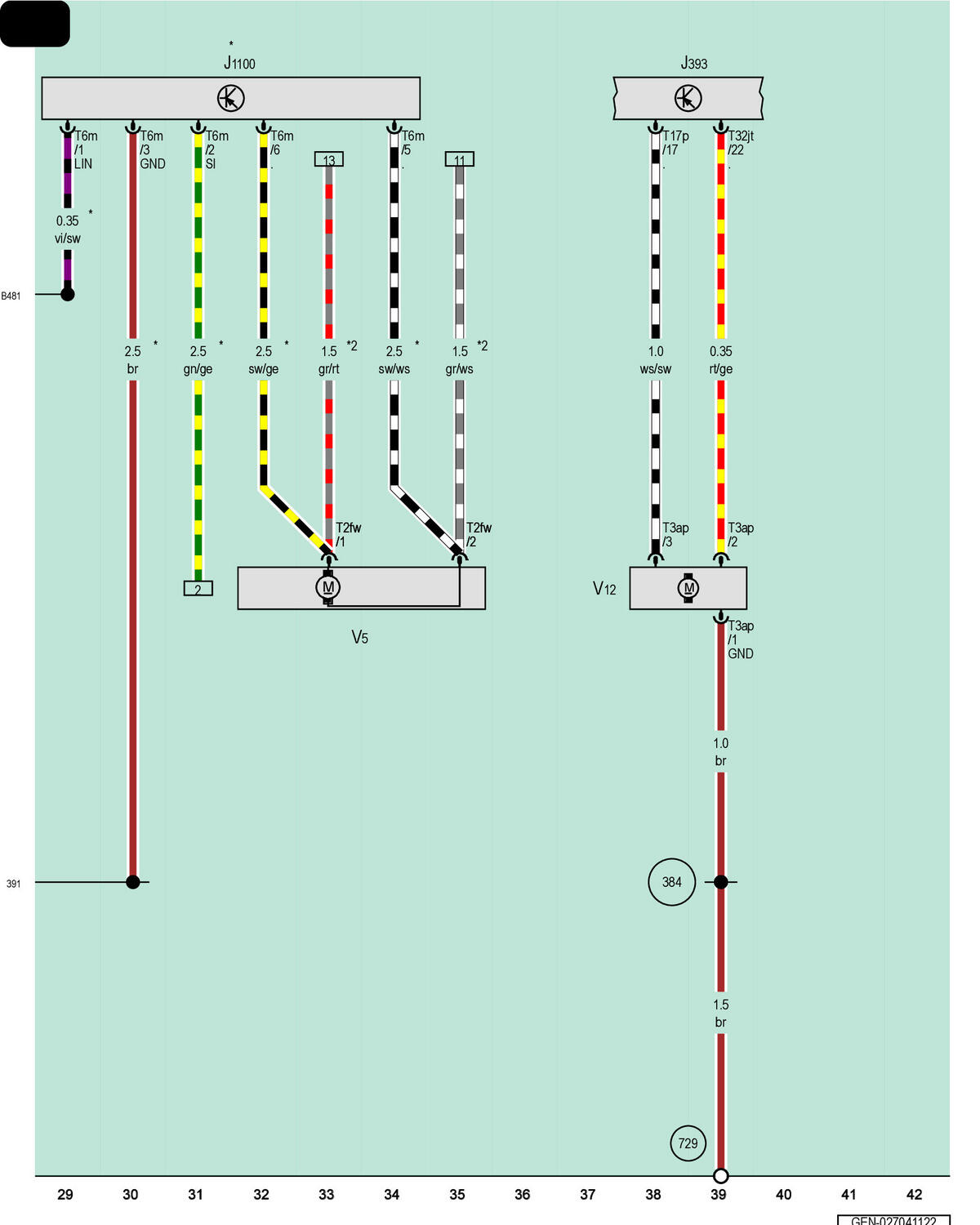

Comfort System Central Control Module, Windshield Washer Pump Control Module, Windshield Washer Pump, Rear Window Wiper Motor

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

J1100

Windshield Washer Pump Control Module

T2fw

2-Pin Connector, Black

T3ap

3-Pin Connector, Black

T6m

6-Pin Connector, Black

T17p

17-Pin Connector, Black

T32jt

32-Pin Connector, Black

V5

Windshield Washer Pump

V12

Rear Window Wiper Motor

384

Ground Connection 19 (in Main Wiring Harness)

391

Ground Connection 26 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

B481

Connection 17 (in Main Wiring Harness)

*

For Vehicles with Adaptive Cruise Control (ACC)

*2

For Vehicles with Cruise Control System
