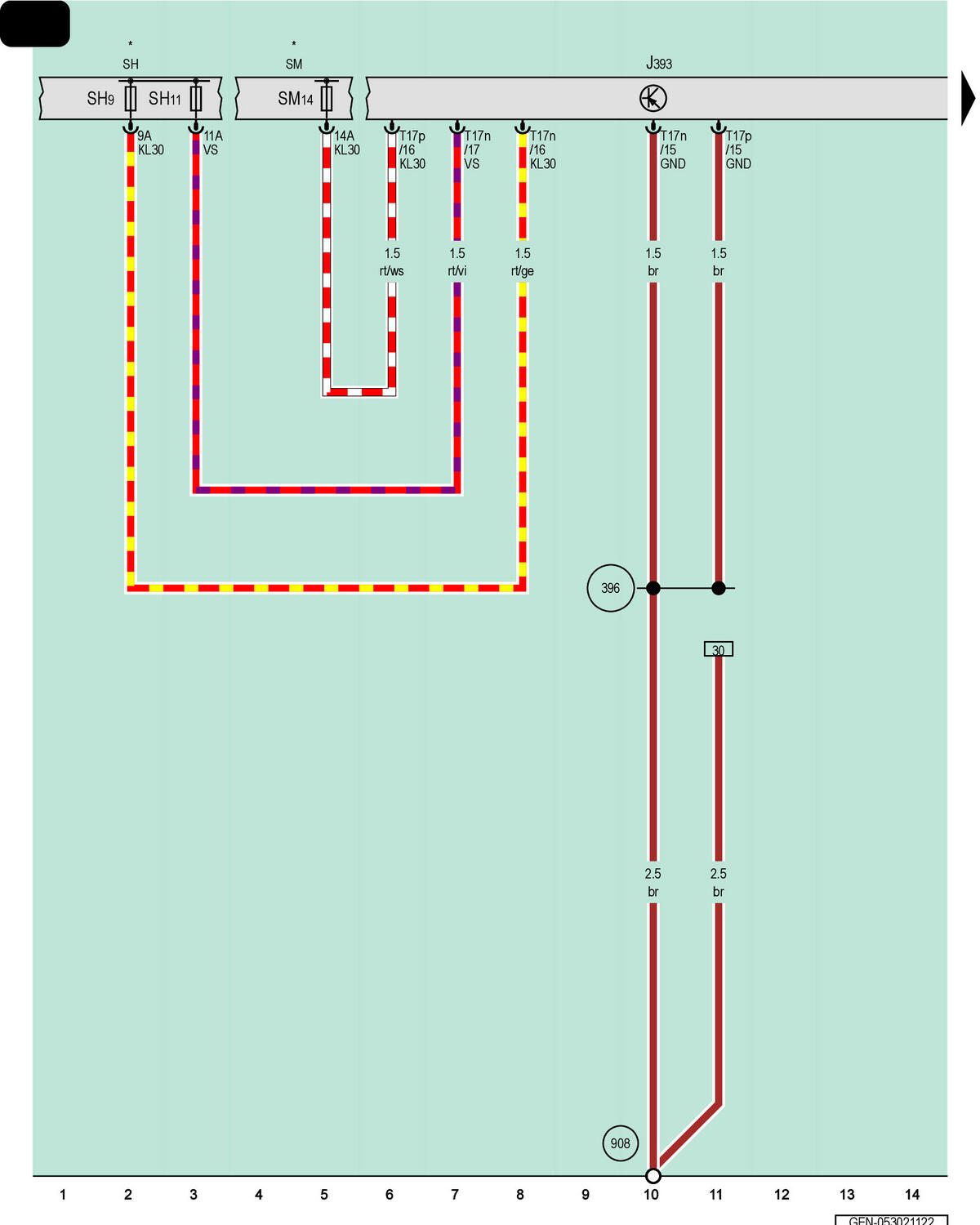

Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

SH

Fuse Panel H

SH9

Fuse 9 on Fuse Panel H

SH11

Fuse 11 on Fuse Panel H

SM

Fuse Panel M

SM14

Fuse 14 on Fuse Panel M

T17n

17-Pin Connector, Brown

T17p

17-Pin Connector, Black

396

Ground Connection 31 (in Main Wiring Harness)

908

Ground Connection 2 on Left Rear Wheel Housing

*

Refer to Applicable Wiring Diagram for Fuse Positions
