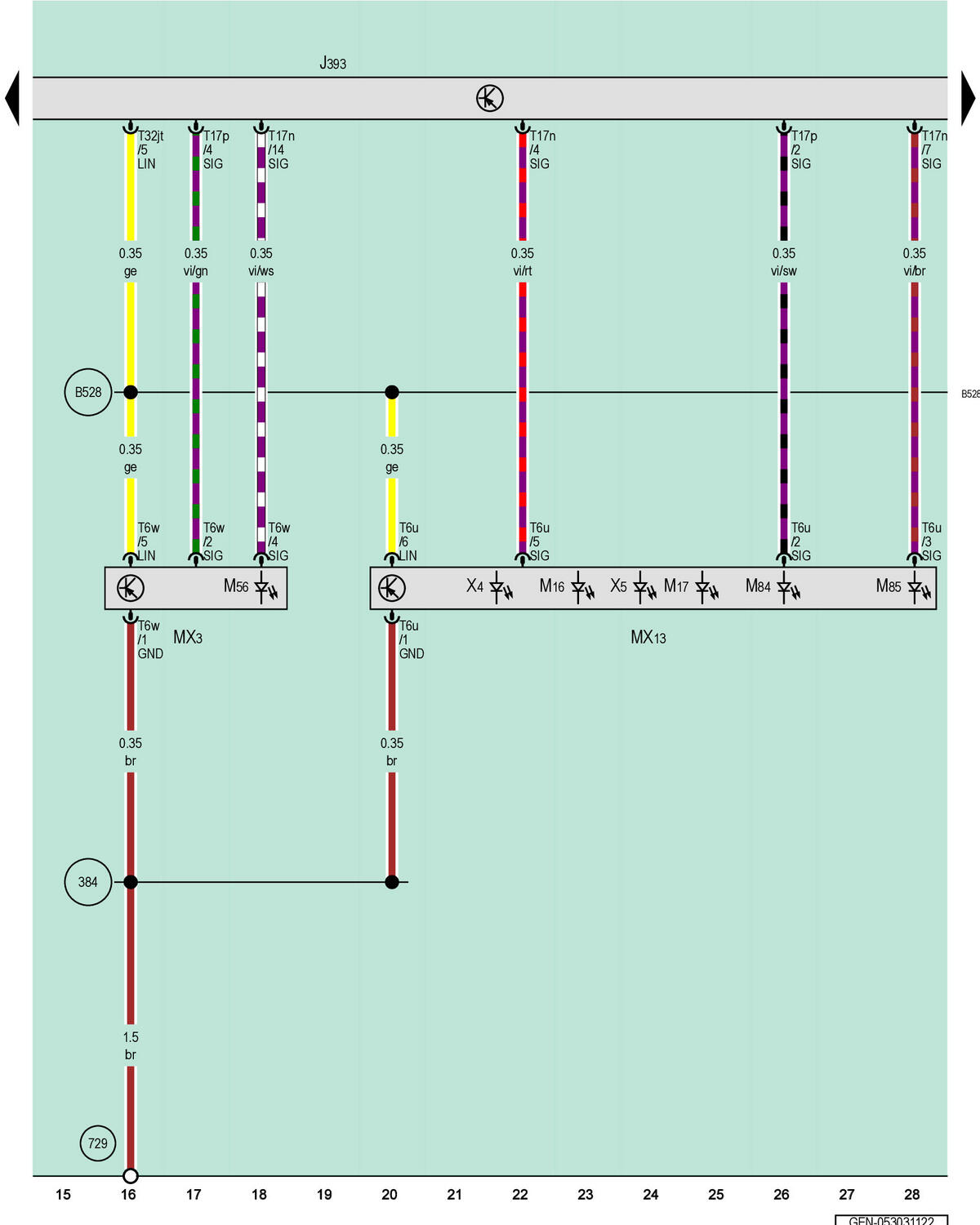

Comfort System Central Control Module, Left Tail Lamp, Center Tail Lamp

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

MX3

Left Tail Lamp

MX13

Center Tail Lamp

M16

Left Back-Up Lamp Bulb

M17

Right Back-Up Lamp Bulb

M56

Left Brake Lamp/Turn Signal Bulb

M84

Left Brake Lamp/Turn Signal Bulb 2

M85

Right Brake Lamp/Turn Signal Bulb 2

T6u

6-Pin Connector, Blue

T6w

6-Pin Connector, Gray

T17n

17-Pin Connector, Brown

T17p

17-Pin Connector, Black

T32jt

32-Pin Connector, Black

X4

Left License Plate Lamp

X5

Right License Plate Lamp

384

Ground Connection 19 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

B528

LIN Bus Connection 1 (in Main Wiring Harness)
