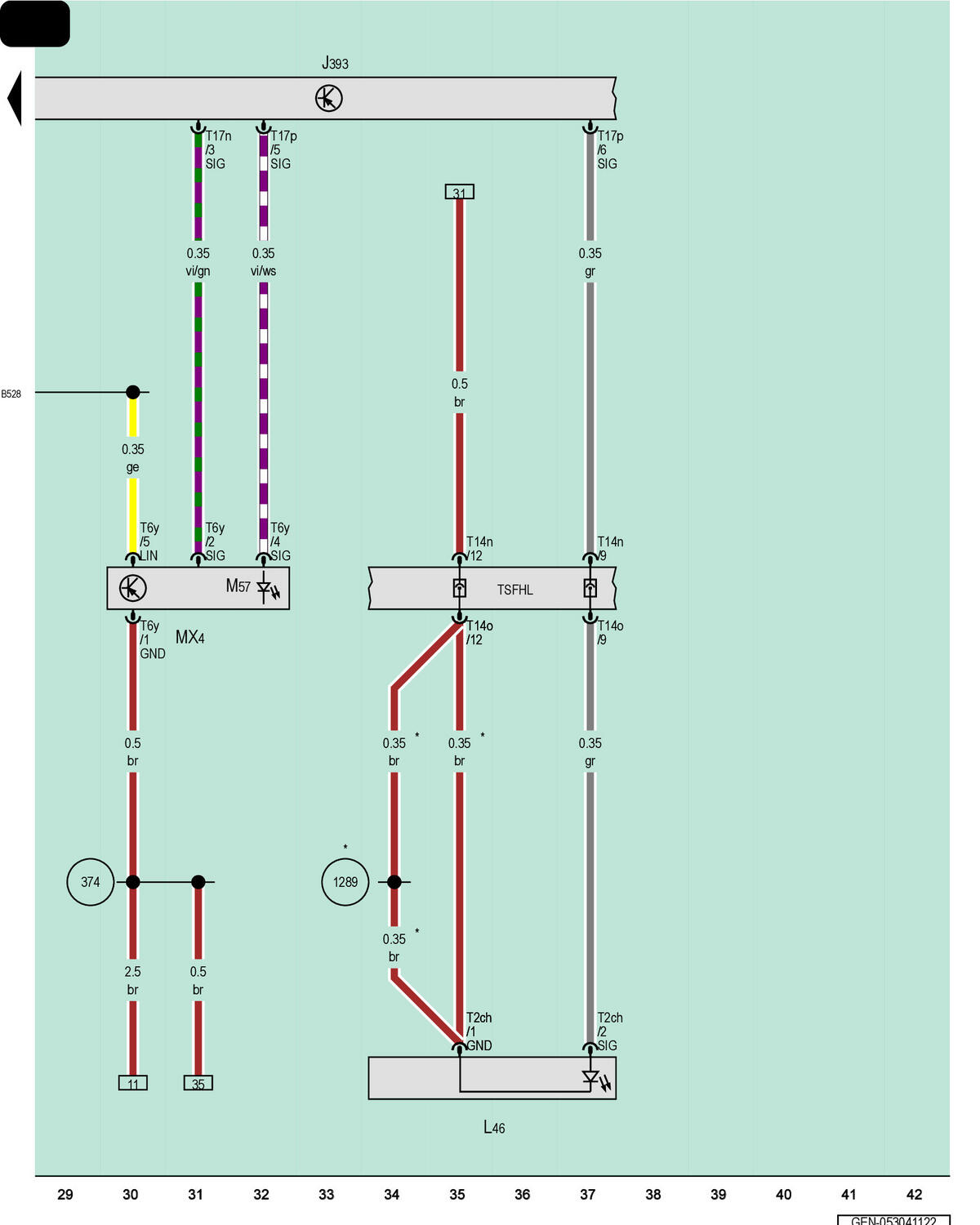

Comfort System Central Control Module, Left Rear Fog Lamp Bulb, Right Tail Lamp
J393
Comfort System Central Control Module
L46
Left Rear Fog Lamp Bulb
MX4
Right Tail Lamp
M57
Right Brake Lamp/Turn Signal Bulb
T2ch
2-Pin Connector, Black
T6y
6-Pin Connector, Gray
T14n
14-Pin Connector, Brown
T14o
14-Pin Connector, Brown
T17n
17-Pin Connector, Brown
T17p
17-Pin Connector, Black
TSFHL
Coupling Point on Left Rear Bumper
374
Ground Connection 9 (in Main Wiring Harness)
1289
Ground Connection 2 (in Rear Bumper Wiring Harness)
B528
LIN Bus Connection 1 (in Main Wiring Harness)
*
Depending on Equipment
