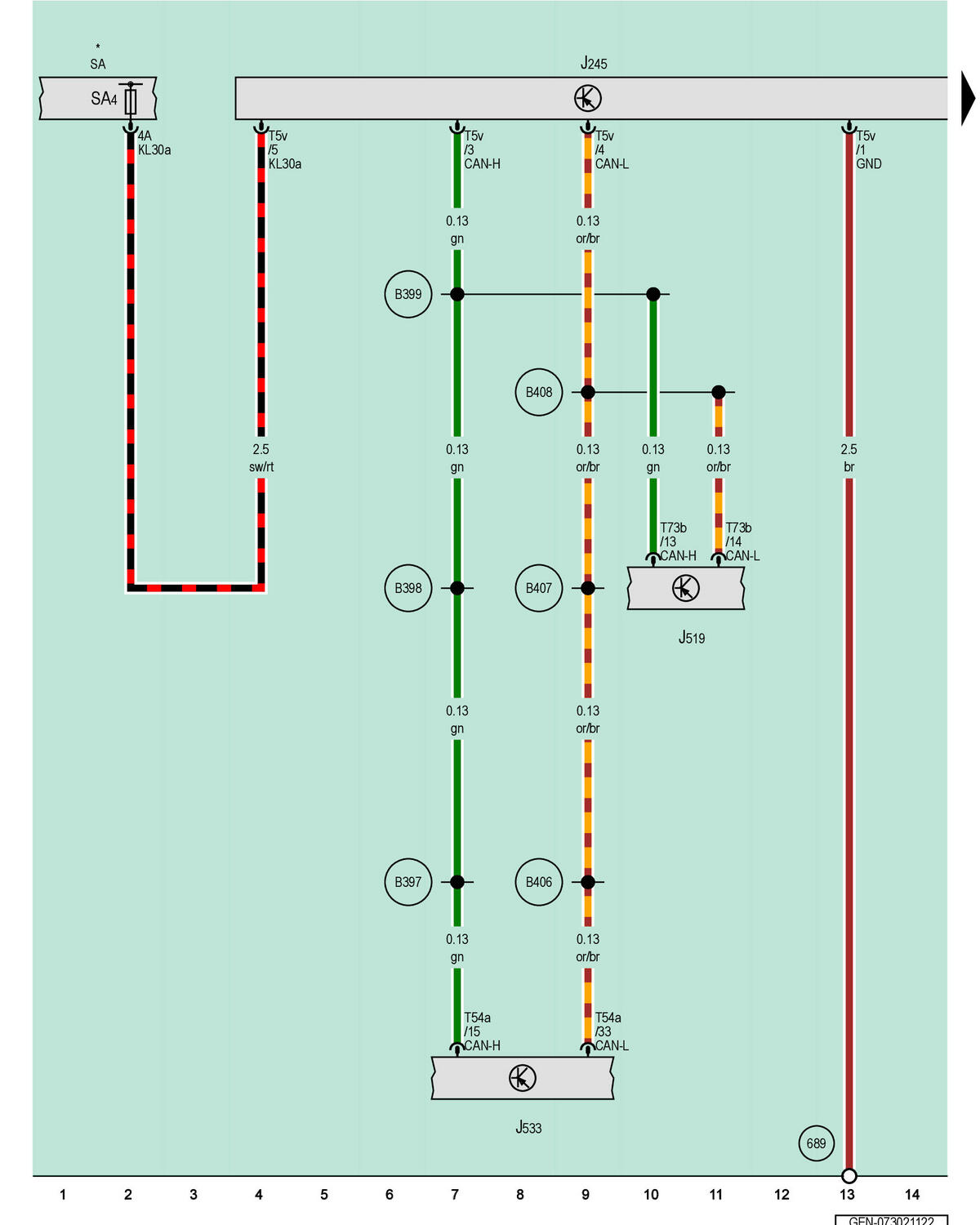

Sunroof Control Module, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J245

Sunroof Control Module

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

SA

Fuse Panel A

SA4

Fuse 4 (On Fuse Panel A)

T5v

5-Pin Connector, Black

T54a

54-Pin Connector, Black

T73b

73-Pin Connector, Black

689

Ground Connection on Roof, Center Front

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
