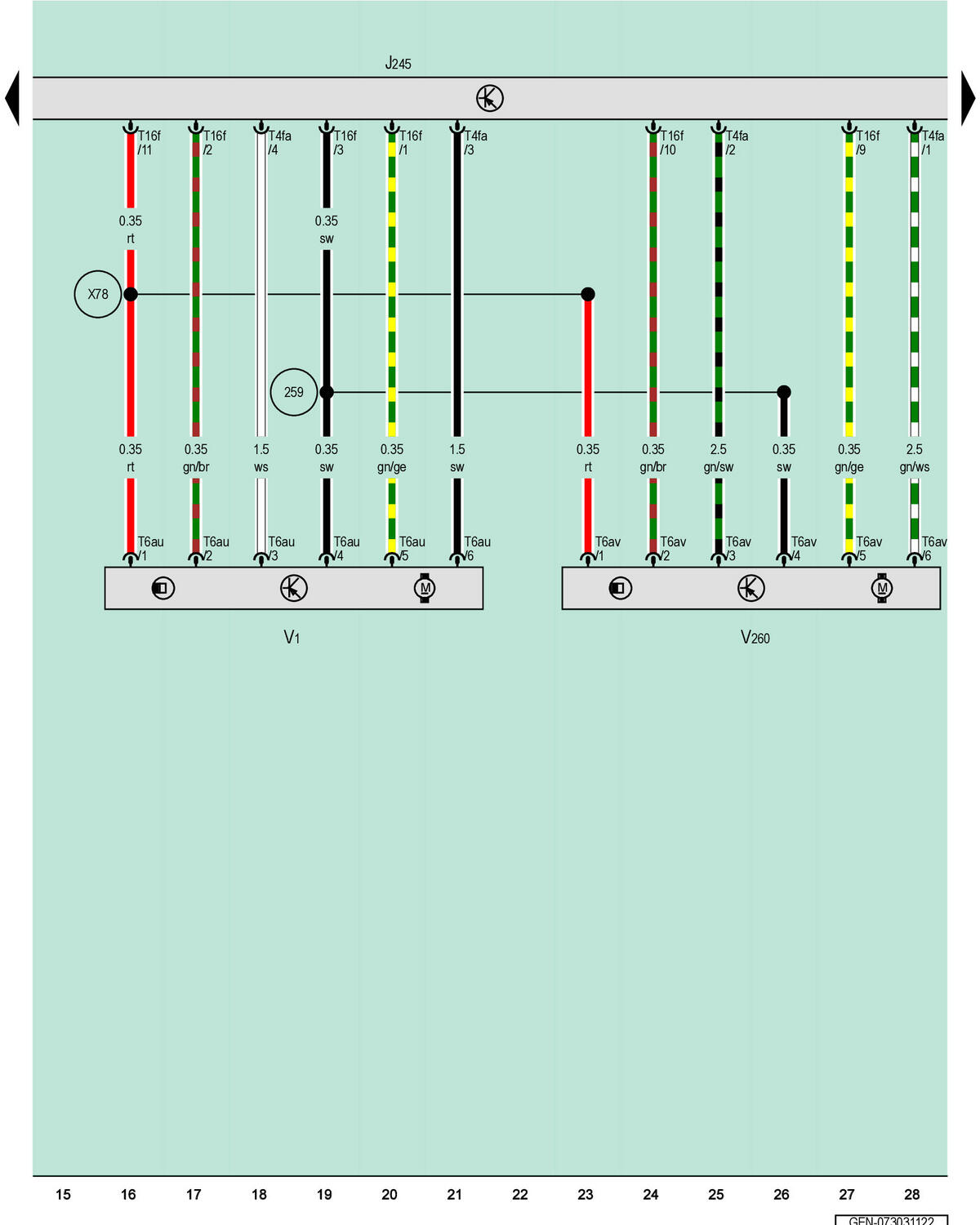

Sunroof Control Module, Sunroof Motor, Sunroof Shade Motor

Courtesy of AUDI OF AMERICA, LLC

J245

Sunroof Control Module

T4fa

4-Pin Connector, Black

T6au

6-Pin Connector, Black

T6av

6-Pin Connector, Black

T16f

16-Pin Connector, Brown

V1

Sunroof Motor

V260

Sunroof Shade Motor

259

Ground Connection 2 (in Optional Equipment Wiring Harness)

X78

Connection 1 (in Optional Equipment Wiring Harness)
