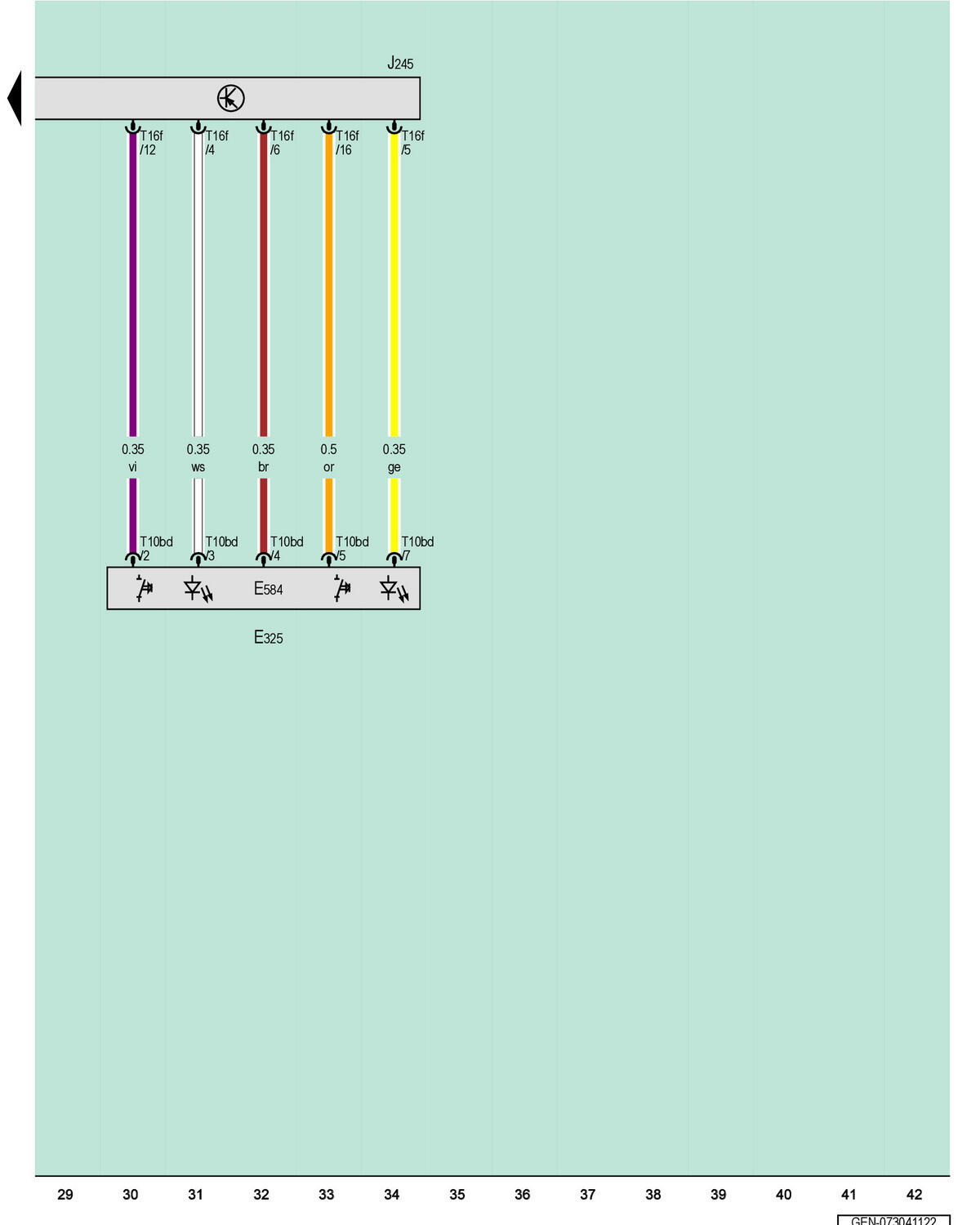

Sunroof Button, Roof Shade Button 1, Sunroof Control Module

GWWGEN-073041122Courtesy of AUDI OF AMERICA, LLC

E325

Sunroof Button

E584

Roof Shade Button 1

J245

Sunroof Control Module

T10bd

10-Pin Connector, Black

T16f

16-Pin Connector, Brown
