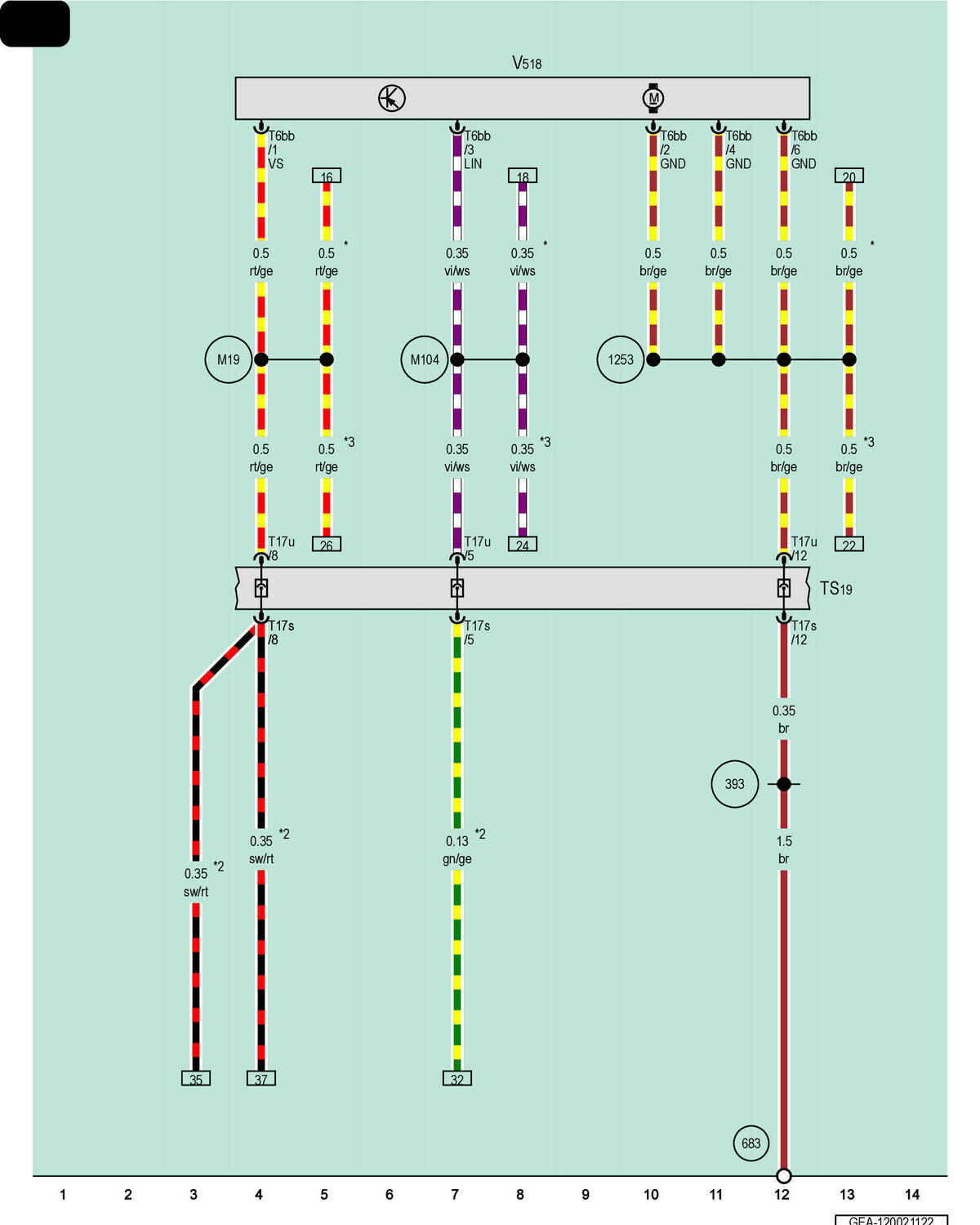

Right Front Seat Cushion Fan 1

Courtesy of AUDI OF AMERICA, LLC

T6bb

6-Pin Connector, Black

T17s

17-Pin Connector, Red

T17u

17-Pin Connector, Red

TS19

Front Passenger Seat Coupling Point

V518

Right Front Seat Cushion Fan 1

393

Ground Connection 28 (in Main Wiring Harness)

683

Ground Connection on Right Front Side Member

1253

Ground Connection 6 (in Seat Adjustment Wiring Harness)

M19

Connection 2 (in Front Passenger Seat Adjustment Wiring Harness)

M104

LIN Bus Connection 1 (in Right Front Seat Wiring Harness)

*

Driver and Front Passenger Memory Seats

*2

Depending on Equipment

*3

Driver Memory Seat
