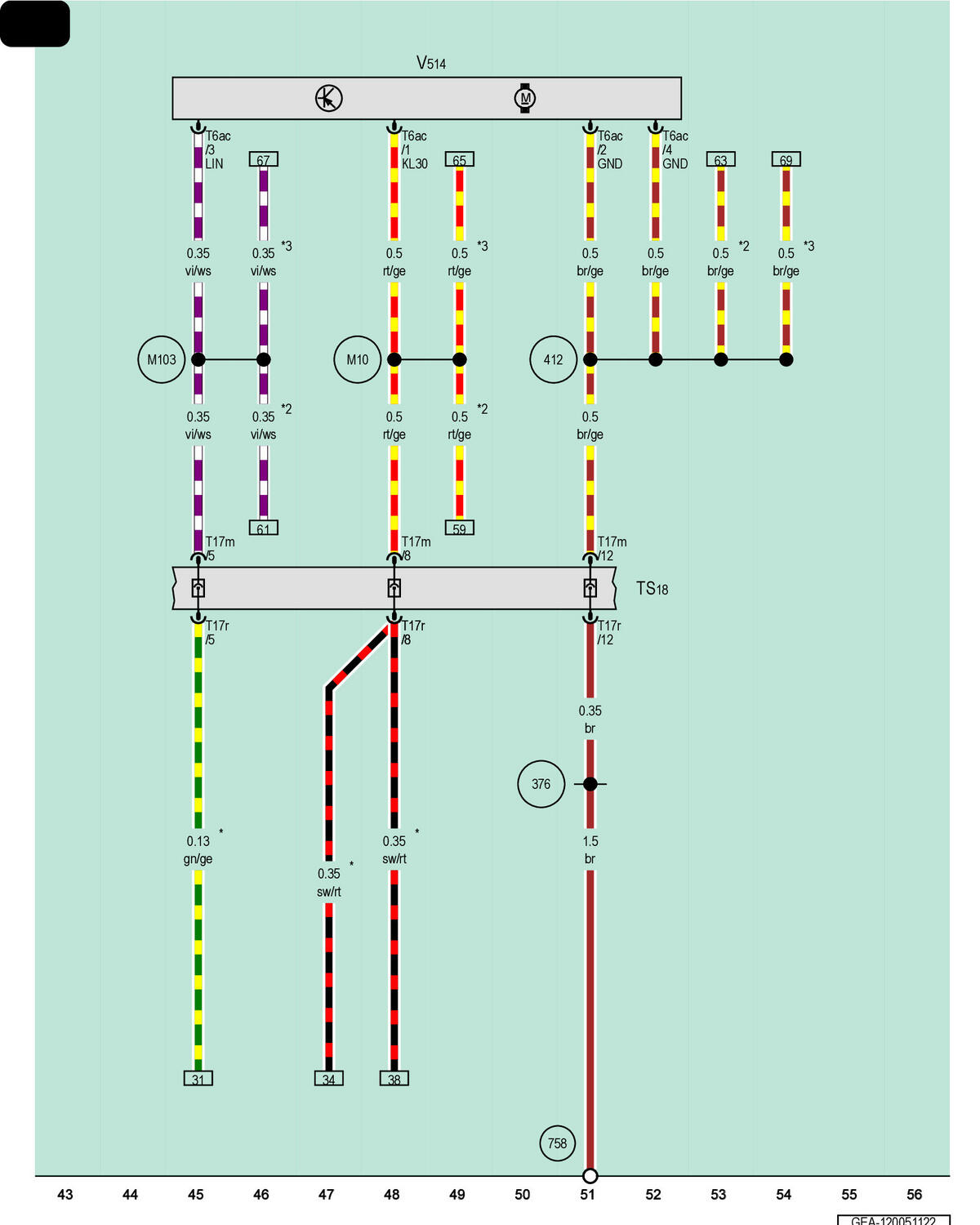

Left Front Seat Cushion Fan 1
T6ac
6-Pin Connector, Black
T17m
17-Pin Connector, Red
T17r
17-Pin Connector, Red
TS18
Driver Seat Coupling Point
V514
Left Front Seat Cushion Fan 1
376
Ground Connection 11 (in Main Wiring Harness)
412
Ground Connection 3 (in Seat Adjustment Wiring Harness)
758
Ground Connection 3 on Center Tunnel
M10
Connection 1 (in Driver Seat Adjustment Wiring Harness)
M103
LIN Bus Connection 1 (in Left Front Seat Wiring Harness)
*
Depending on Equipment
*2
Driver and Front Passenger Memory Seats
*3
Driver Memory Seat
