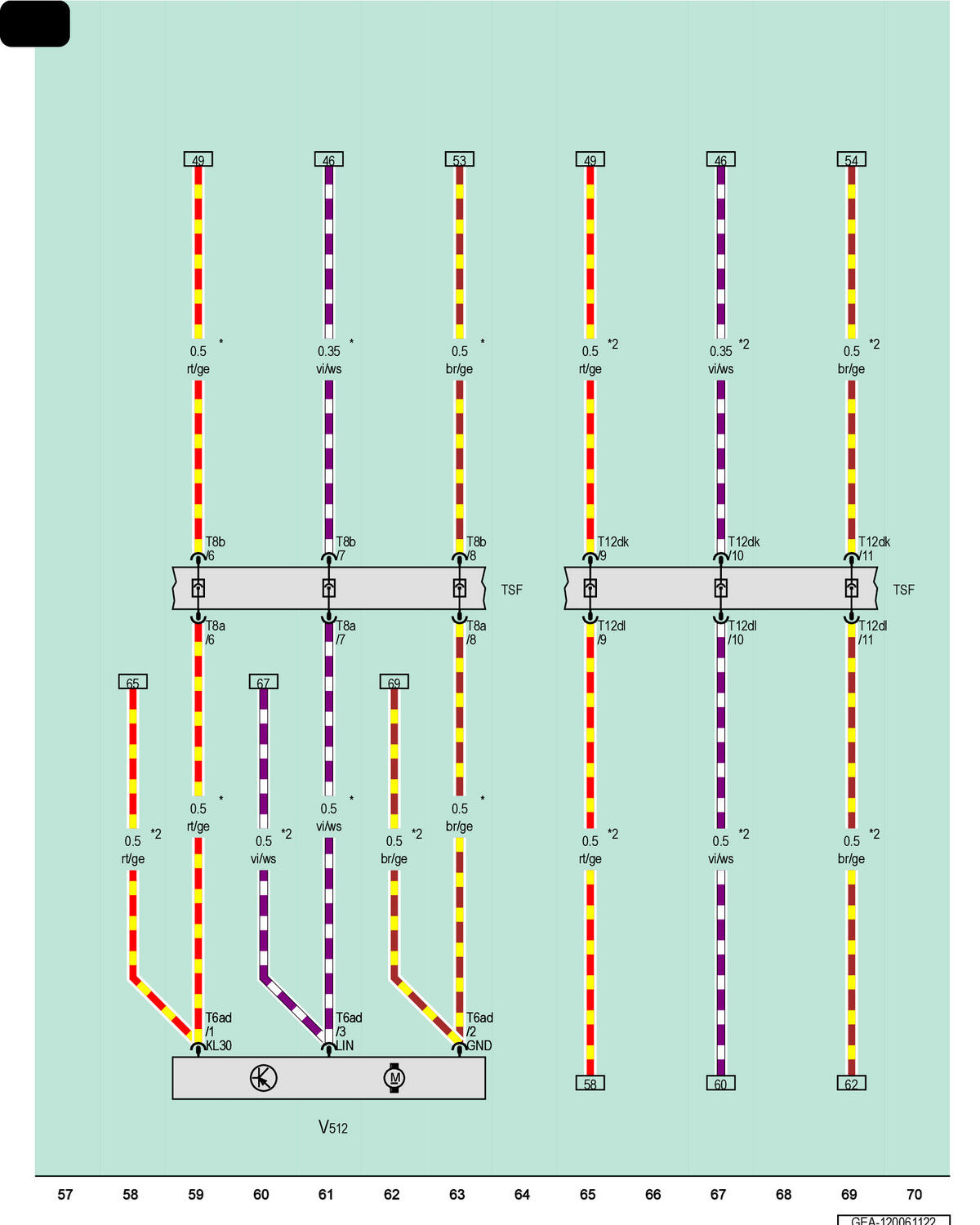

Left Front Seat Backrest Fan 1

Courtesy of AUDI OF AMERICA, LLC

T6ad

6-Pin Connector, Black

T8a

8-Pin Connector, Black

T8b

8-Pin Connector, Black

T12dk

12-Pin Connector, Black

T12dl

12-Pin Connector, Black

TSF

Driver Seat Backrest Coupling Point

V512

Left Front Seat Backrest Fan 1

*

Driver and Front Passenger Memory Seats

*2

Driver Memory Seat
