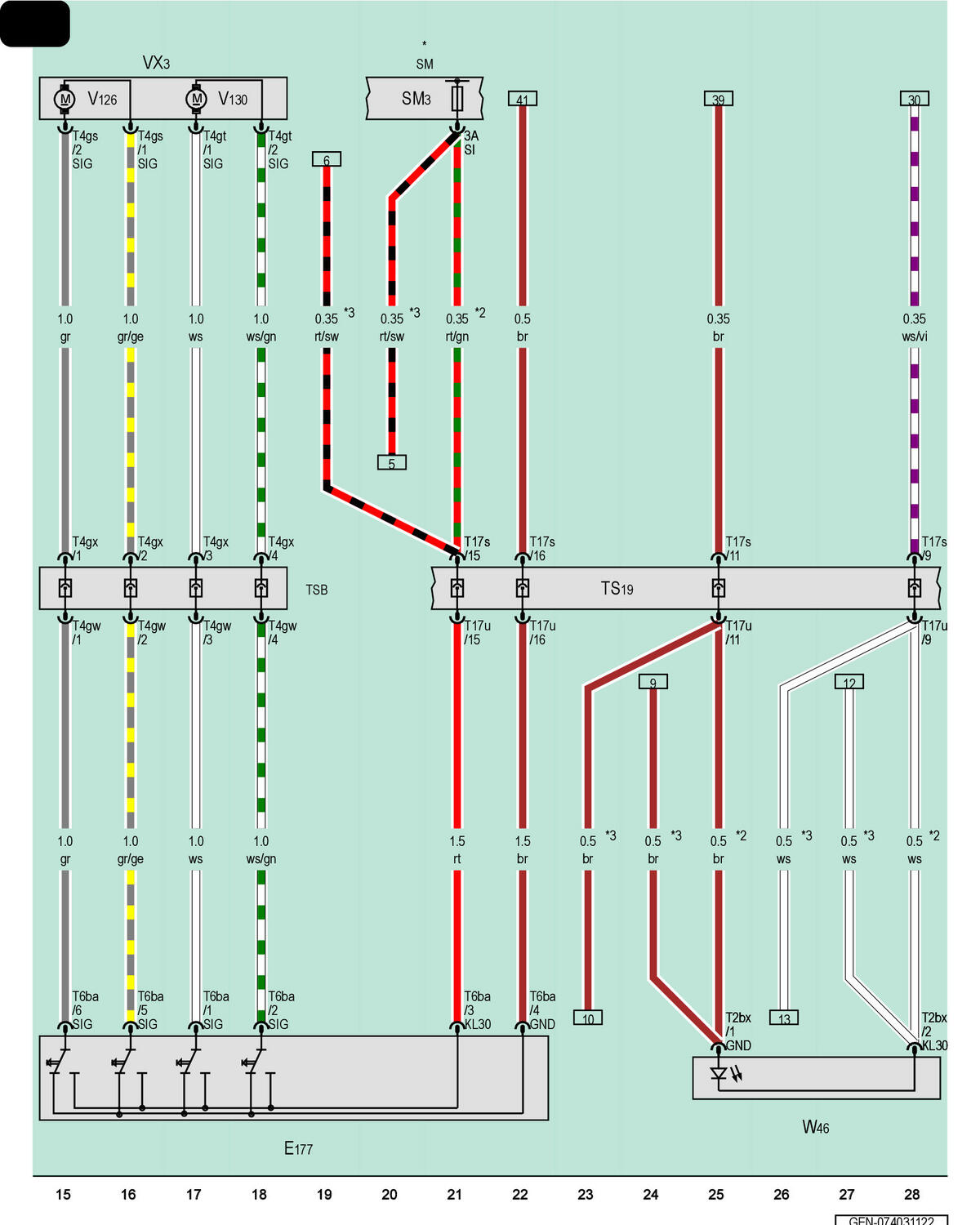

Front Passenger Seat Lumbar Support Adjustment Switch, Front Passenger Seat Lumbar Support, Right Rear FOOTWELL Lamp

Courtesy of AUDI OF AMERICA, LLC

E177

Front Passenger Seat Lumbar Support Adjustment Switch

Fuse Panel M

SM3

Fuse 3 on Fuse Panel M

T2bx

2-Pin Connector, Brown

T4gs

4-Pin Connector, Black

T4gt

4-Pin Connector, Black

T4gw

4-Pin Connector, Black

T4gx

4-Pin Connector, Black

T6ba

6-Pin Connector, Black

T17s

17-Pin Connector, Red

T17u

17-Pin Connector, Red

TS19

Front Passenger Seat Coupling Point

TSB

Front Passenger Seat Backrest Coupling Point

VX3

Front Passenger Seat Lumbar Support

V126

Front Passenger Seat Lumbar Support Curvature Adjustment Motor

V130

Front Passenger Seat Lumbar Support Height Adjustment Motor

W46

Right Rear Footwell Lamp

Refer to Applicable Wiring Diagram for Fuse Positions

For LHD Vehicles

For RHD Vehicles
