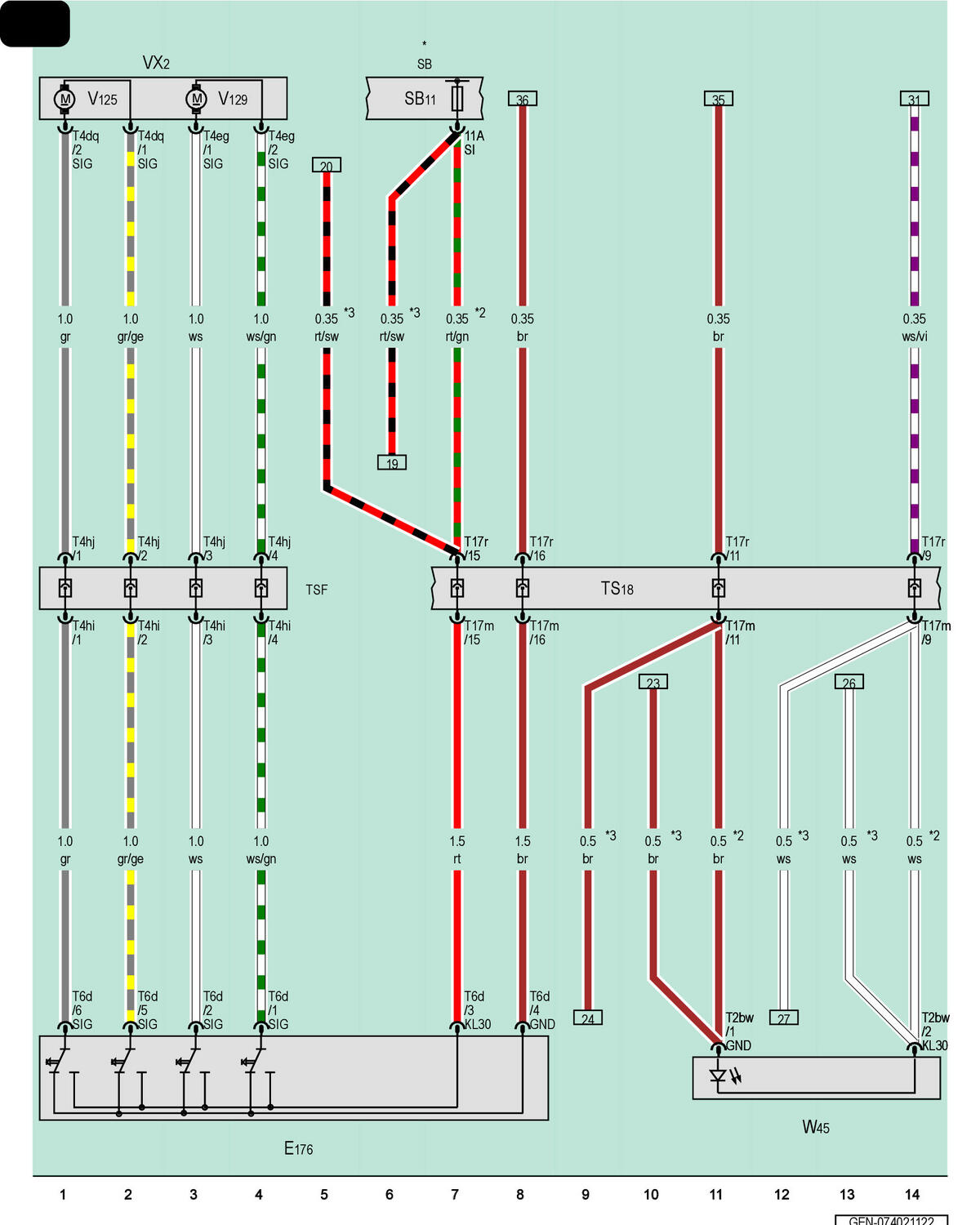

Driver Seat Lumbar Support Adjustment Switch, Driver Seat Lumbar Support, Left Rear FOOTWELL Lamp

Courtesy of AUDI OF AMERICA, LLC

E176

Driver Seat Lumbar Support Adjustment Switch

SB

Fuse Panel B

SB11

Fuse 11 (On Fuse Panel B)

T2bw

2-Pin Connector, Brown

T4dq

4-Pin Connector, Black

T4eg

4-Pin Connector, Black

T4hi

4-Pin Connector, Black

T4hj

4-Pin Connector, Black

T6d

6-Pin Connector, Black

T17m

17-Pin Connector, Red

T17r

17-Pin Connector, Red

TS18

Driver Seat Coupling Point

TSF

Driver Seat Backrest Coupling Point

VX2

Driver Seat Lumbar Support

V125

Driver Seat Lumbar Support Curvature Adjustment Motor

V129

Driver Seat Lumbar Support Height Adjustment Motor

W45

Left Rear Footwell Lamp

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For LHD Vehicles

*3

For RHD Vehicles
